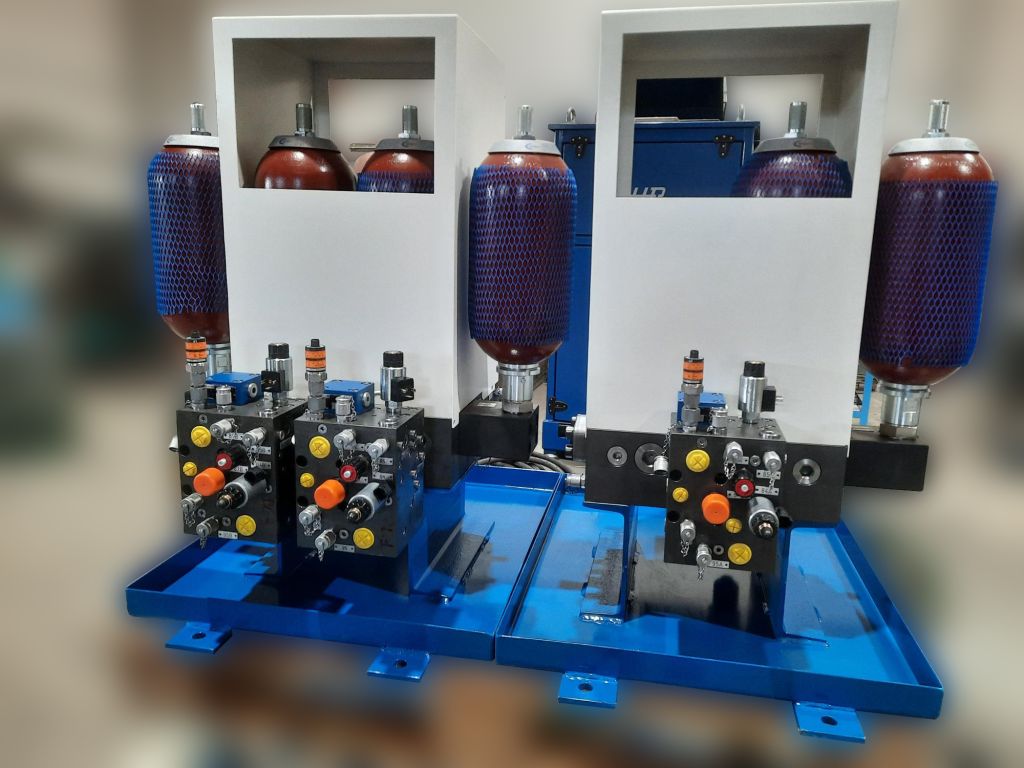

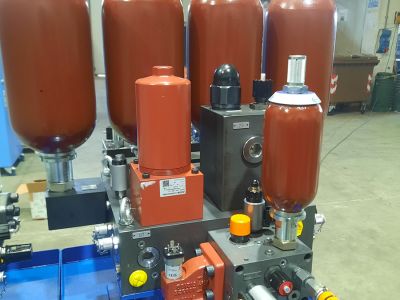

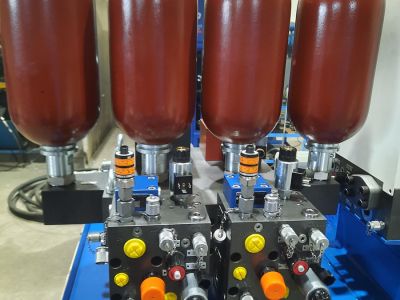

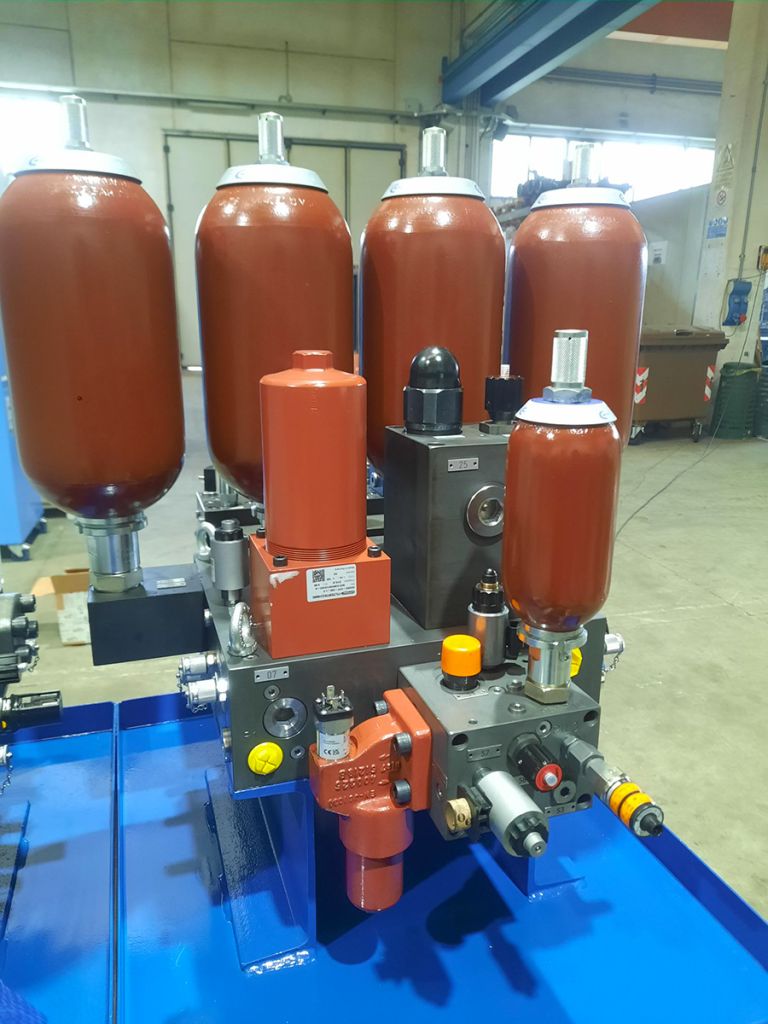

MANIFOLD HSM

HSM Manifold is a common solution for testing application, here below their main features:

• OFF: no flow – no pressure; LOW: Max flow – low pressure; HIGH: Max flow – Max pressure
• control by means of two 24VDC-30W digital commands.
• pressurization and unload ramp time can be adjusted manually, in order to have a soft start/stop
• available size: HSM100 (100 l/min) ; HSM200 (200 l/min) ; HSM400 (400 l/min) ; HSM800 (800 l/min) ;  HSM1000 (1000 l/min)
• available indipendent channels: from 1x to 4x (P-T-PIL-DR-HB)
• available options: bladder accumulators for lines P-T-PIL, pilot block with filter, electro-proportional valve for remote pressure setting, counterpressure block for T line, pressure switch and/or analogue pressure tansmitter.
