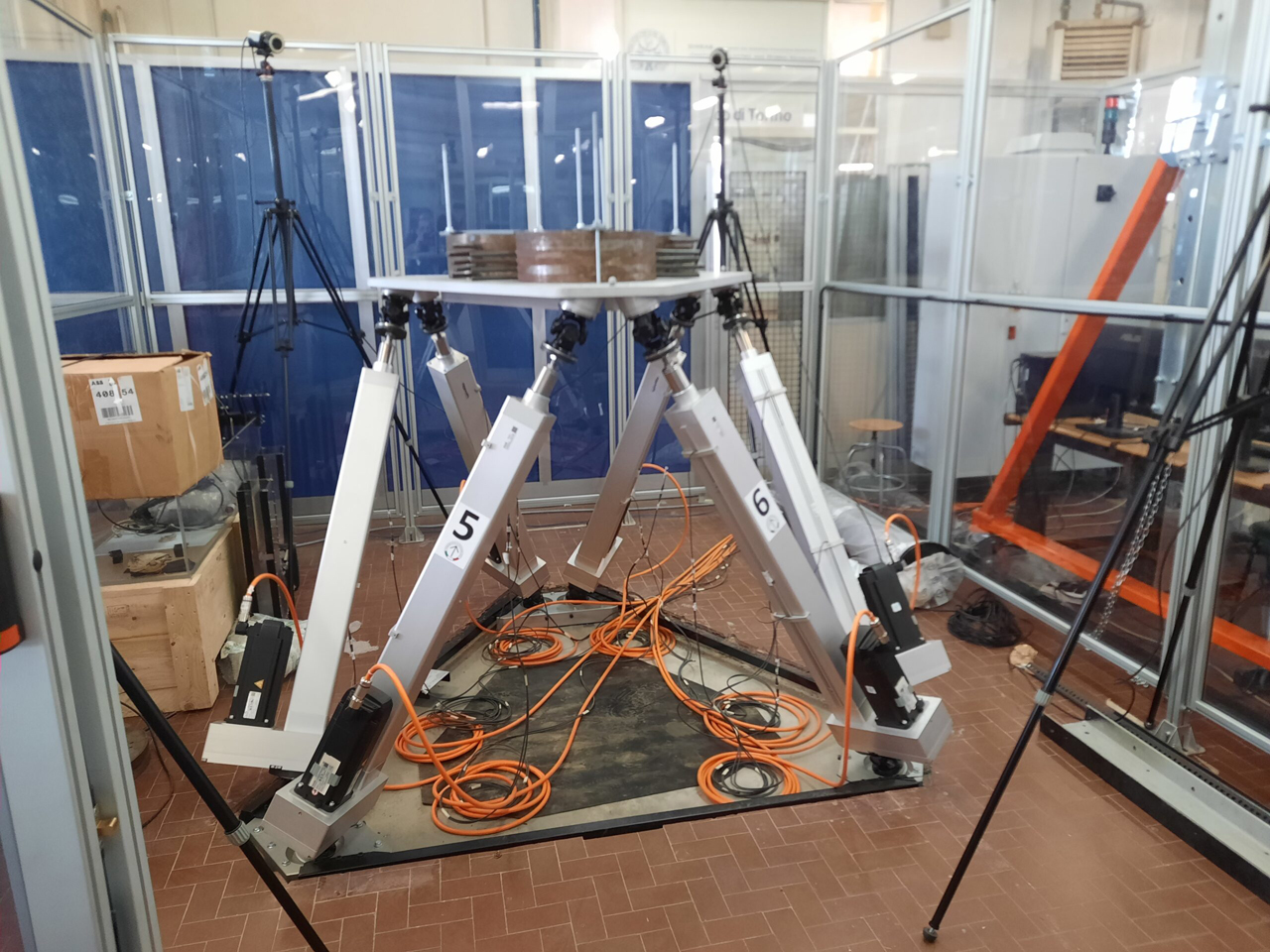

Hexapod for sea waves simulation

This simulation table is designed for 6 degree of freedom positioning, in particular for sea waves simulation with payload up to 500 kg.

Main characteristics

• 6 DOF electro-mechanical motion table.
• Maximum payload: 500 kg
• Maximum stroke: 460 mm (X-Y-Z)
• Maximum linear speed: 1,2 m/s (X-Y-Z)
• Maximum rotative speed: 140°/s
• Maximum linear acceleration: 8 m/s2
• Maximum rotative acceleration: 1100 °/s2

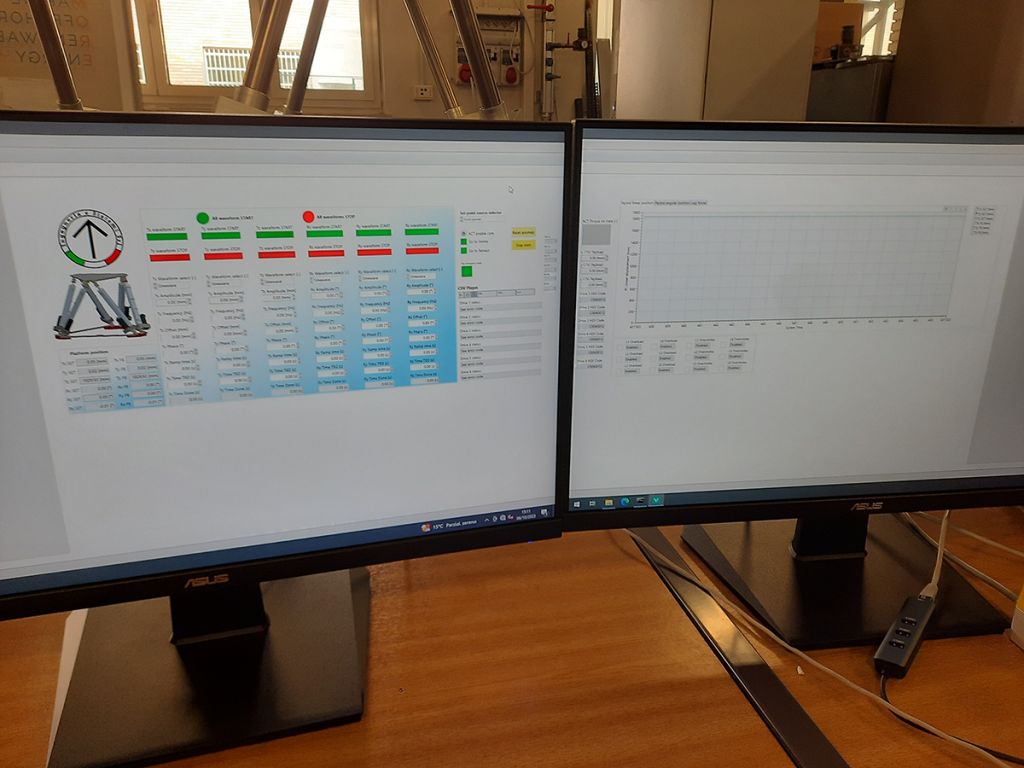

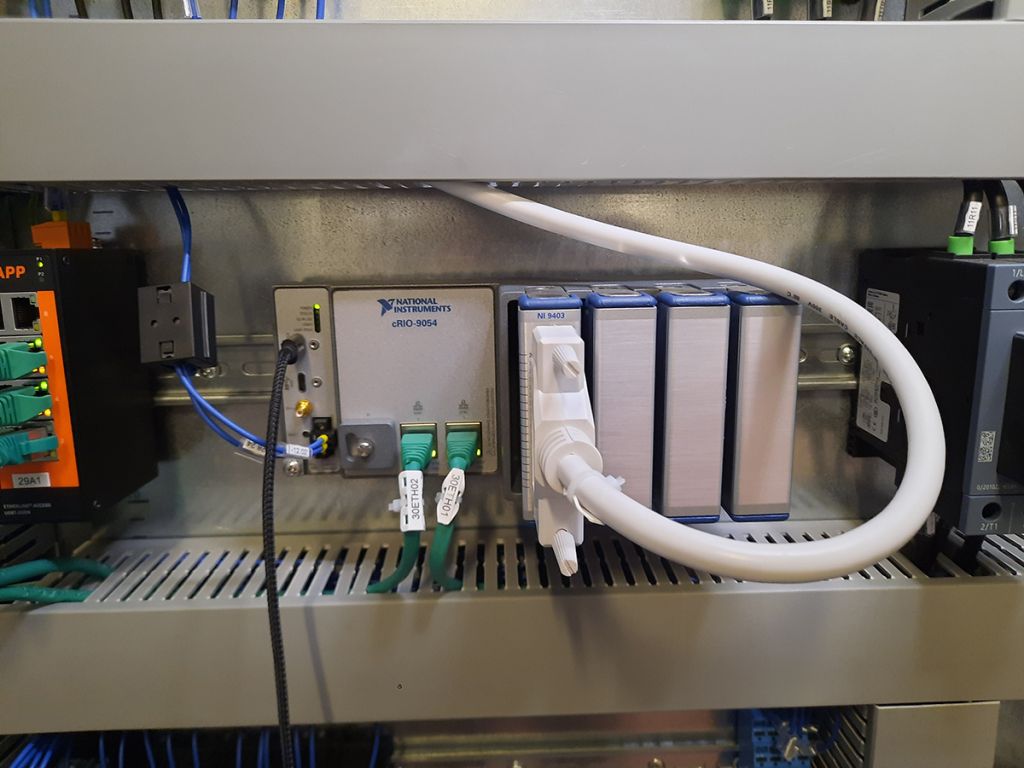

• Real time controller and data acquisition system,  connection possible with an external simulator for Hardware In the Loop control.
