Technical specifications
ELECTRICAL CABINETS
Electrical cabinets provide power supply to machines and auxiliary items, they normally comprehend:
- PLC
- Safety PLC
- Drives, including AC/AC frequency converters, DC/AC inverters
- Regenerative drives
- Operator panels
- Interfaces connection for external customer peripherical devices and/or controller.

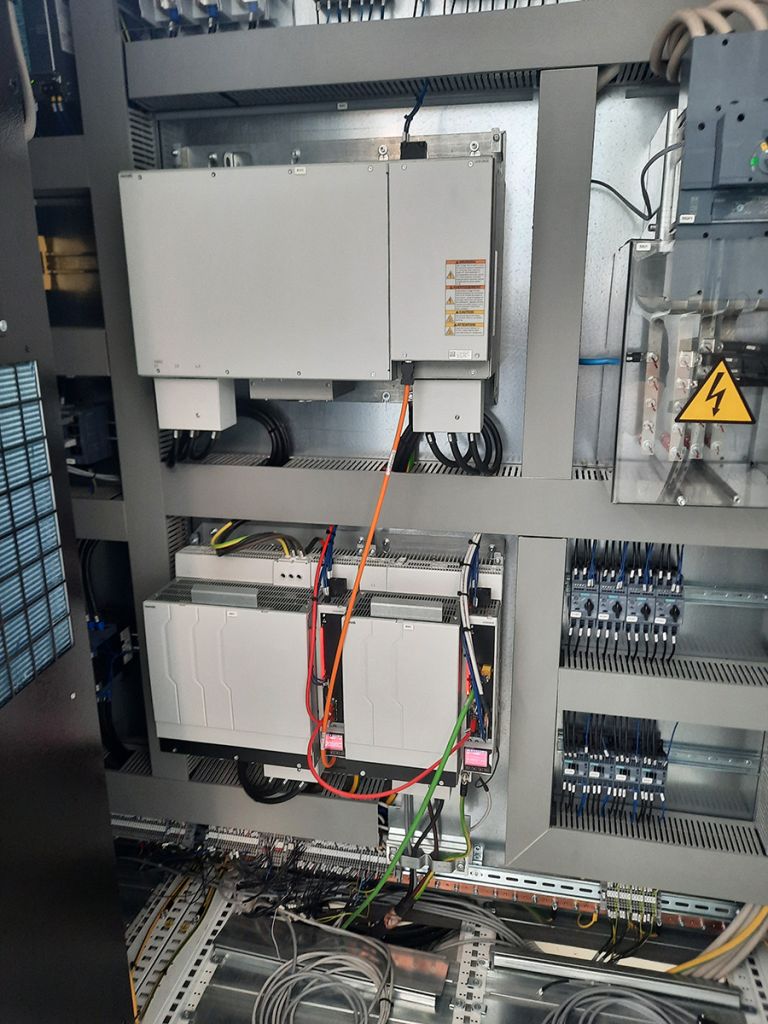

Electrical cabinet with 375 A CtrlX regenerative drive unit, standard PLC and Safety PLC and air conditioner
Electrical cabinet with 6 CtrlX drives and National Instruments cRIO controller

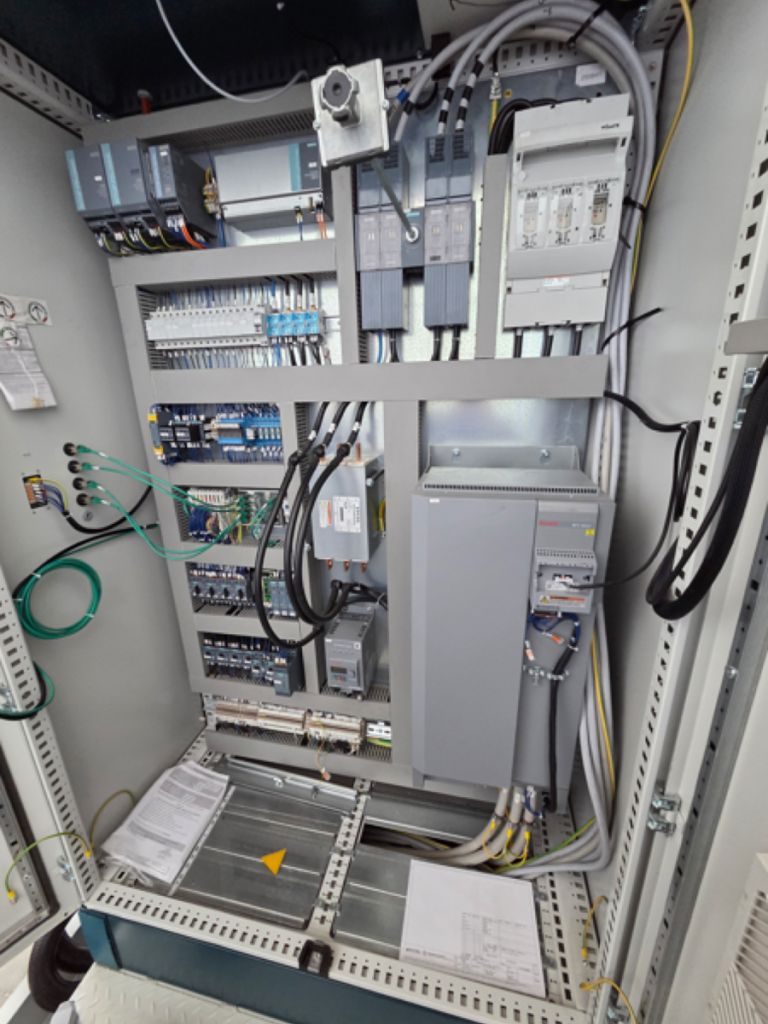

100 kW Electrical cabinet with Bosh Rexroth frequency Converter and Beckhoff I/O modules

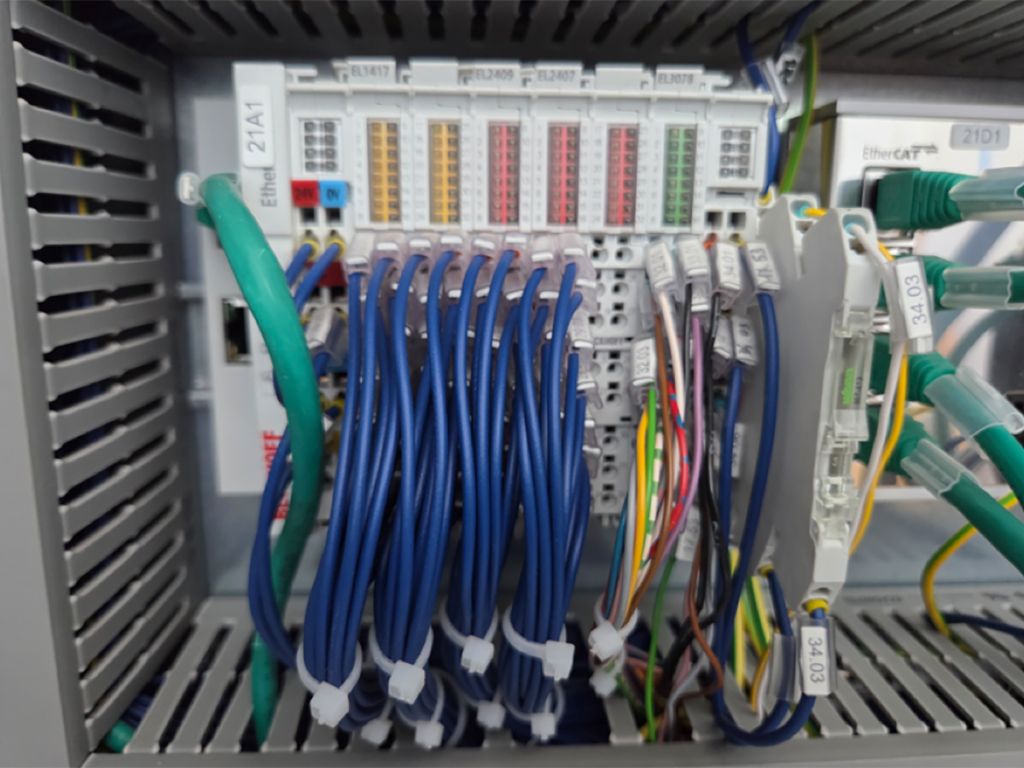

EtherCAT and safety circuit connections among multiple nodes: HPU cabinets, manifold electrical box and remote HMI panel

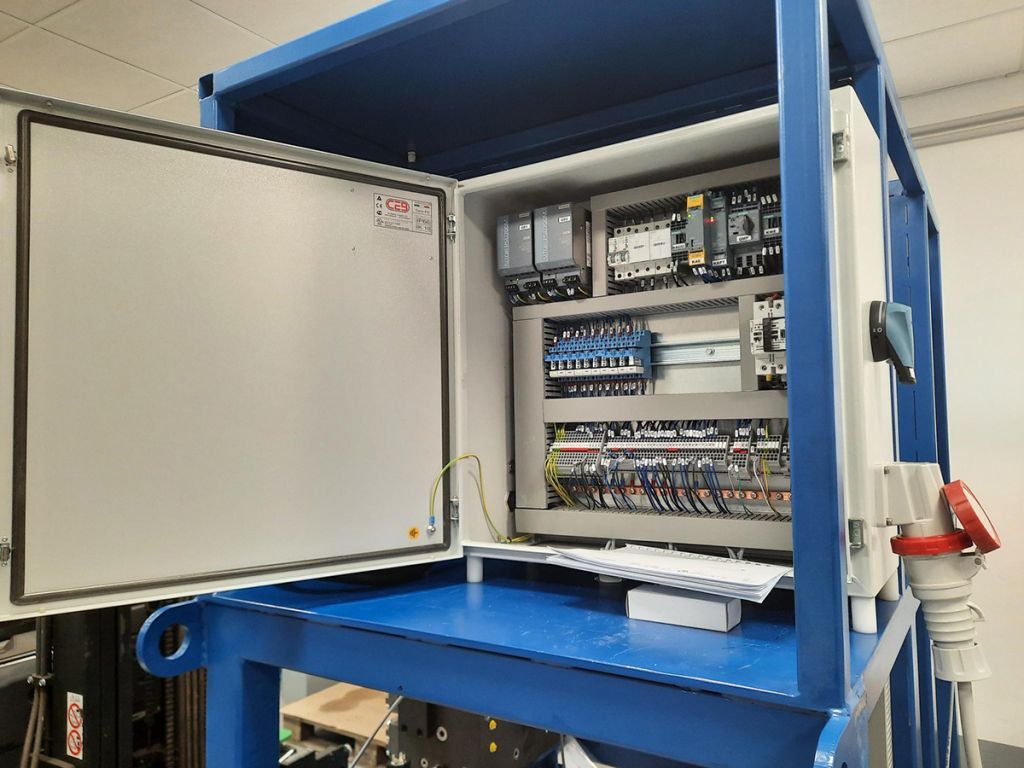

Electrical cabinet and manual interface designed on purpose inside Test bench carter panels

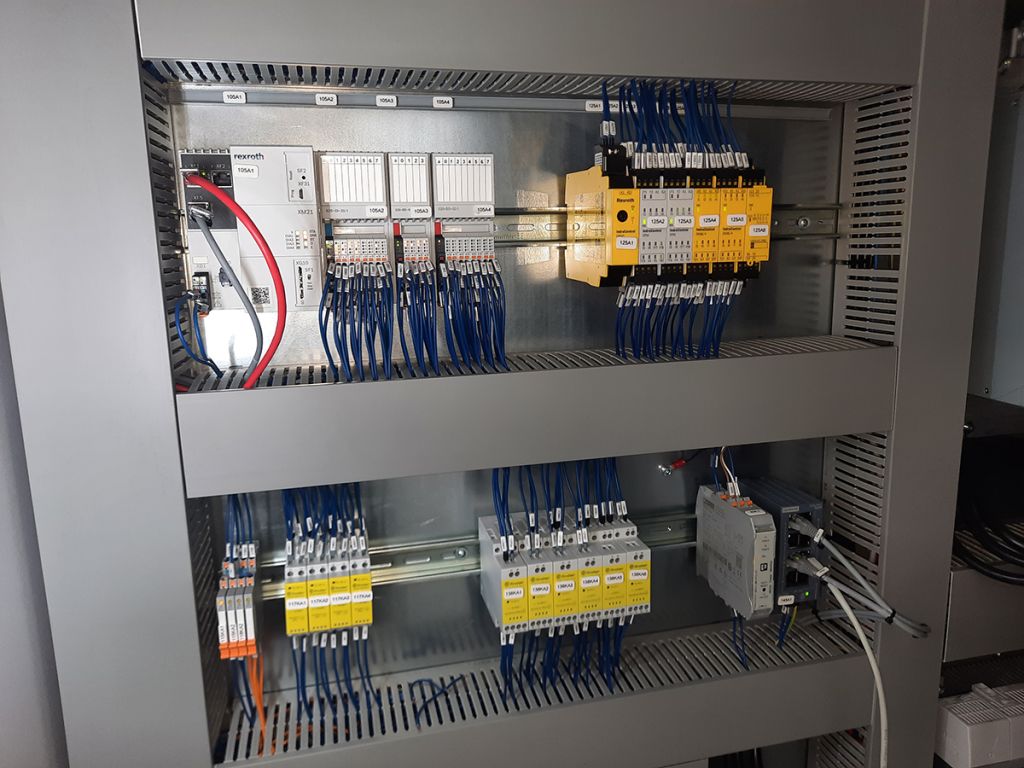

Single axes and double axis electrical cabinet with Bosch Rexroth servodrives, PLC and operator panel

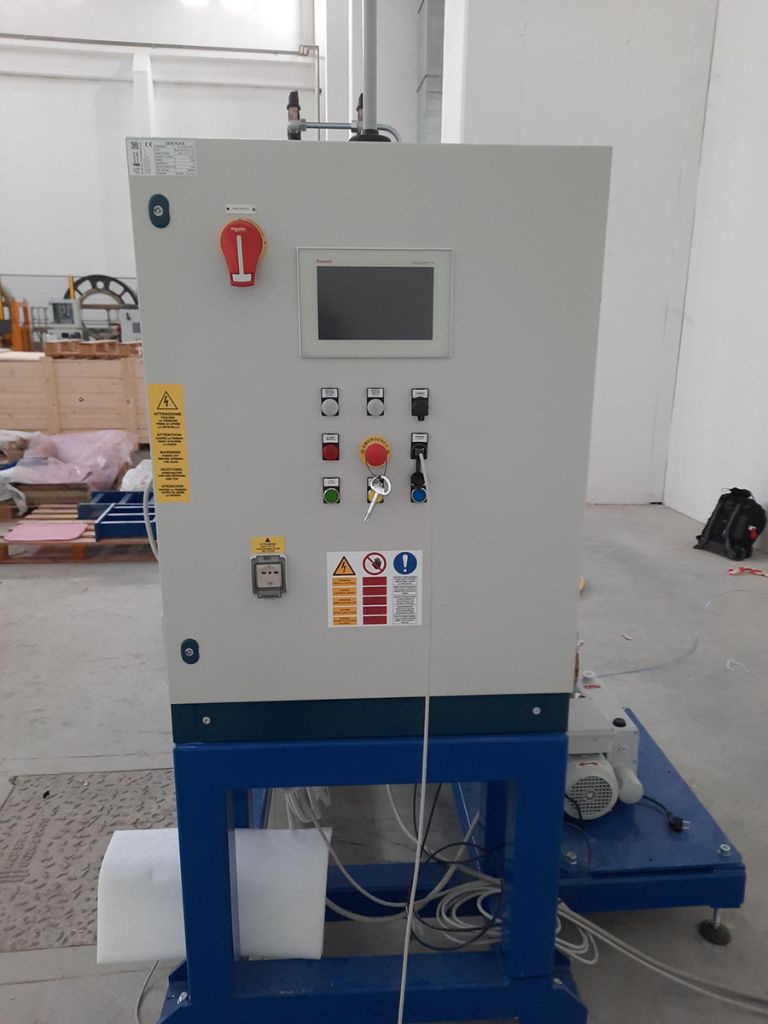

Electrical cabinet frontal interfaces with operator panels

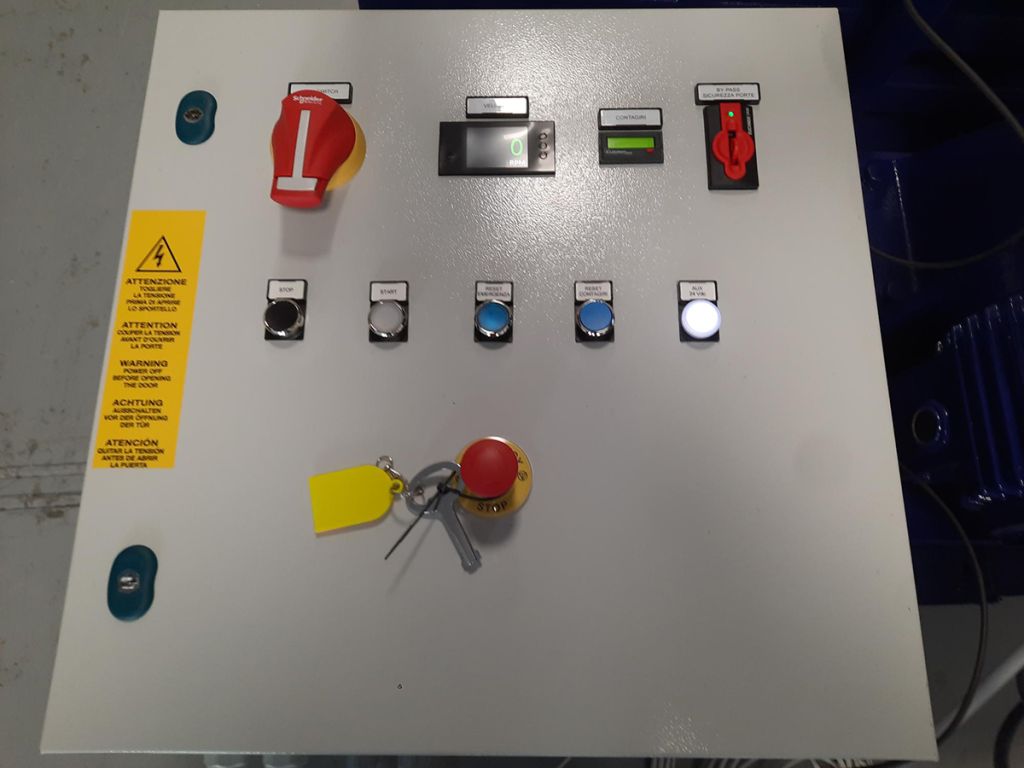

Frontal panel interfaces with manual push-buttons, switches, BNC analogue I/O, RJ45 network port, Euchner electronic safety key and digital displays.

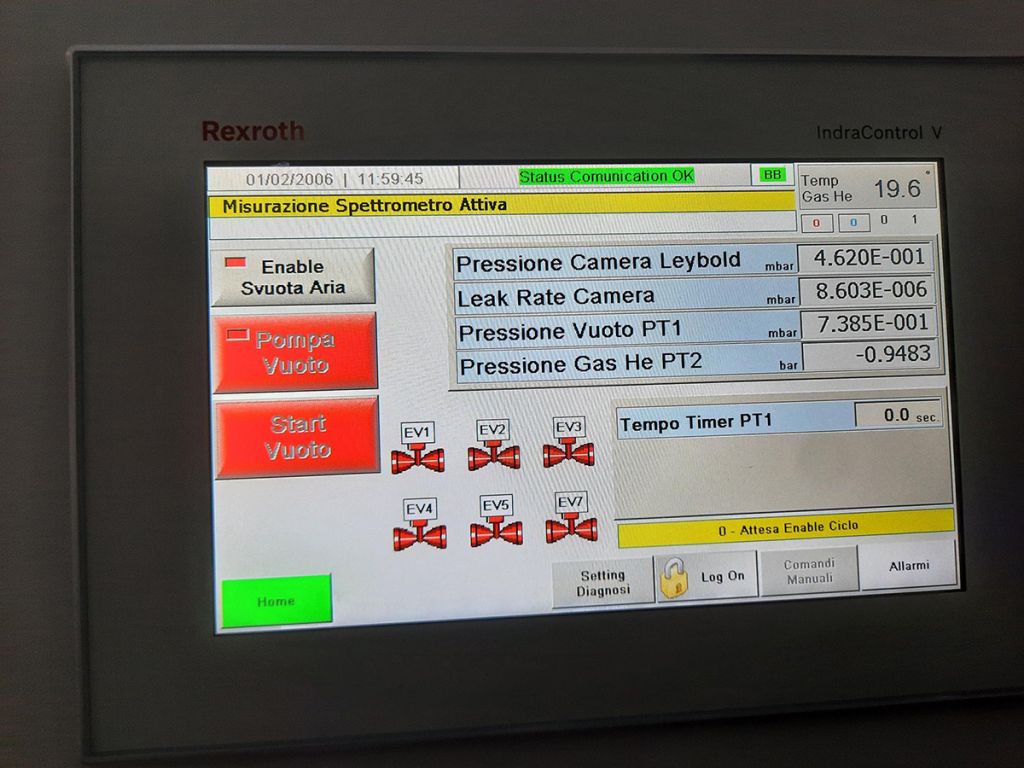

Operating panel HMI
