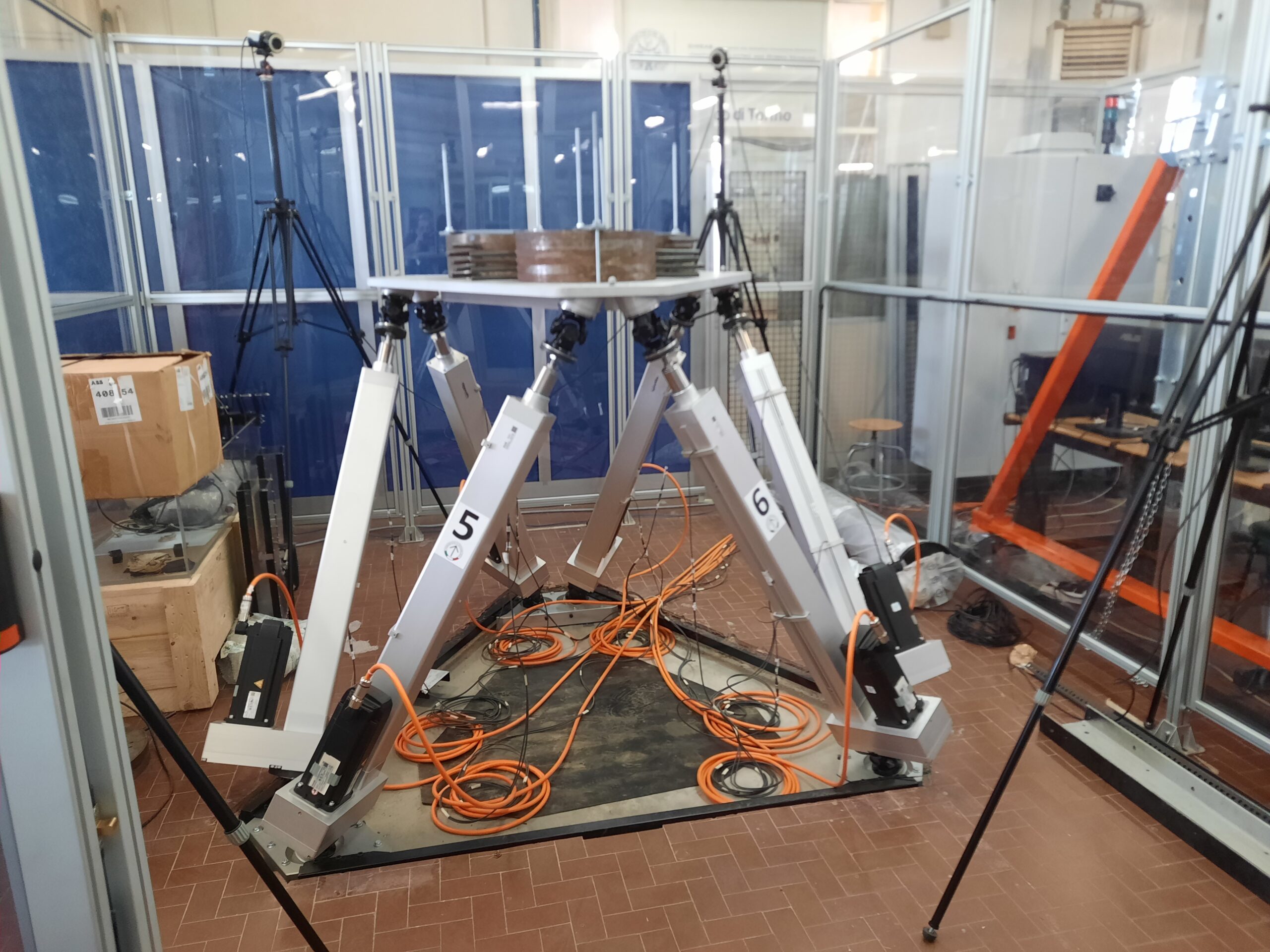

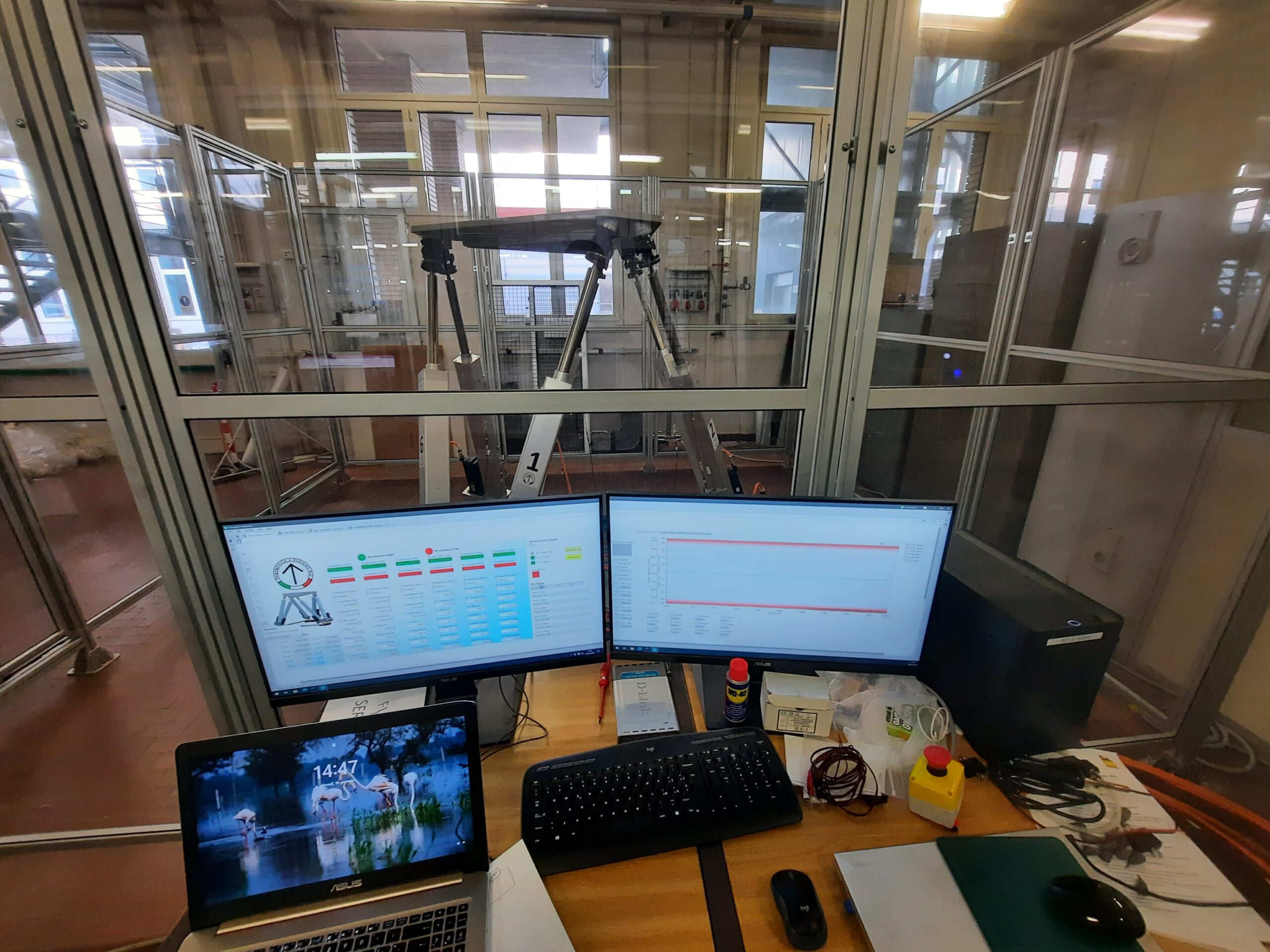

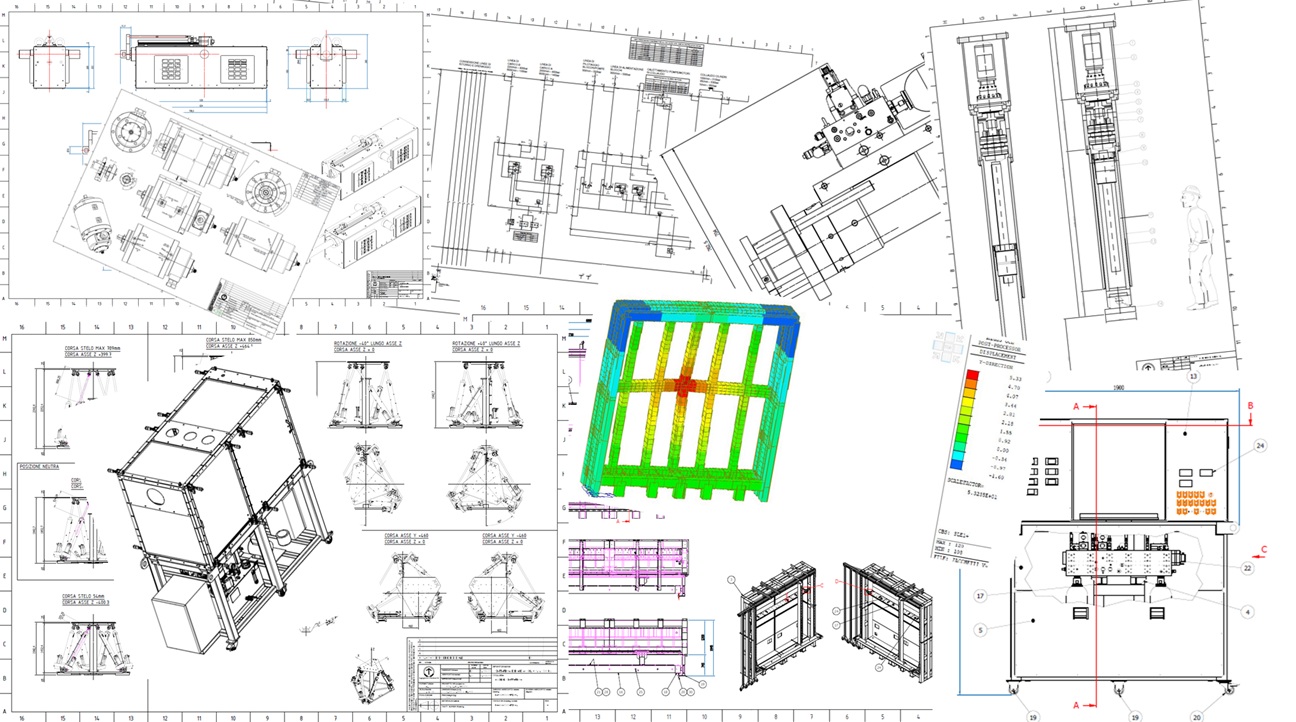

Hexapod for sea waves simulation

This simulation table is designed for 6 degree of freedom positioning, in particular for sea waves simulation with payload up to 500 kg.

Main characteristics

6 DOF electro-mechanical motion table.
Maximum payload: 500 kg
Maximum stroke: 460 mm (X-Y-Z)
Maximum linear speed: 1,2 m/s (X-Y-Z)
Maximum rotative speed: 140°/s
Maximum linear acceleration: 8 m/s2
Maximum rotative acceleration: 1100 °/s2
Real time controller and data acquisition system, connection possible with an external simulator for Hardware In the Loop control.

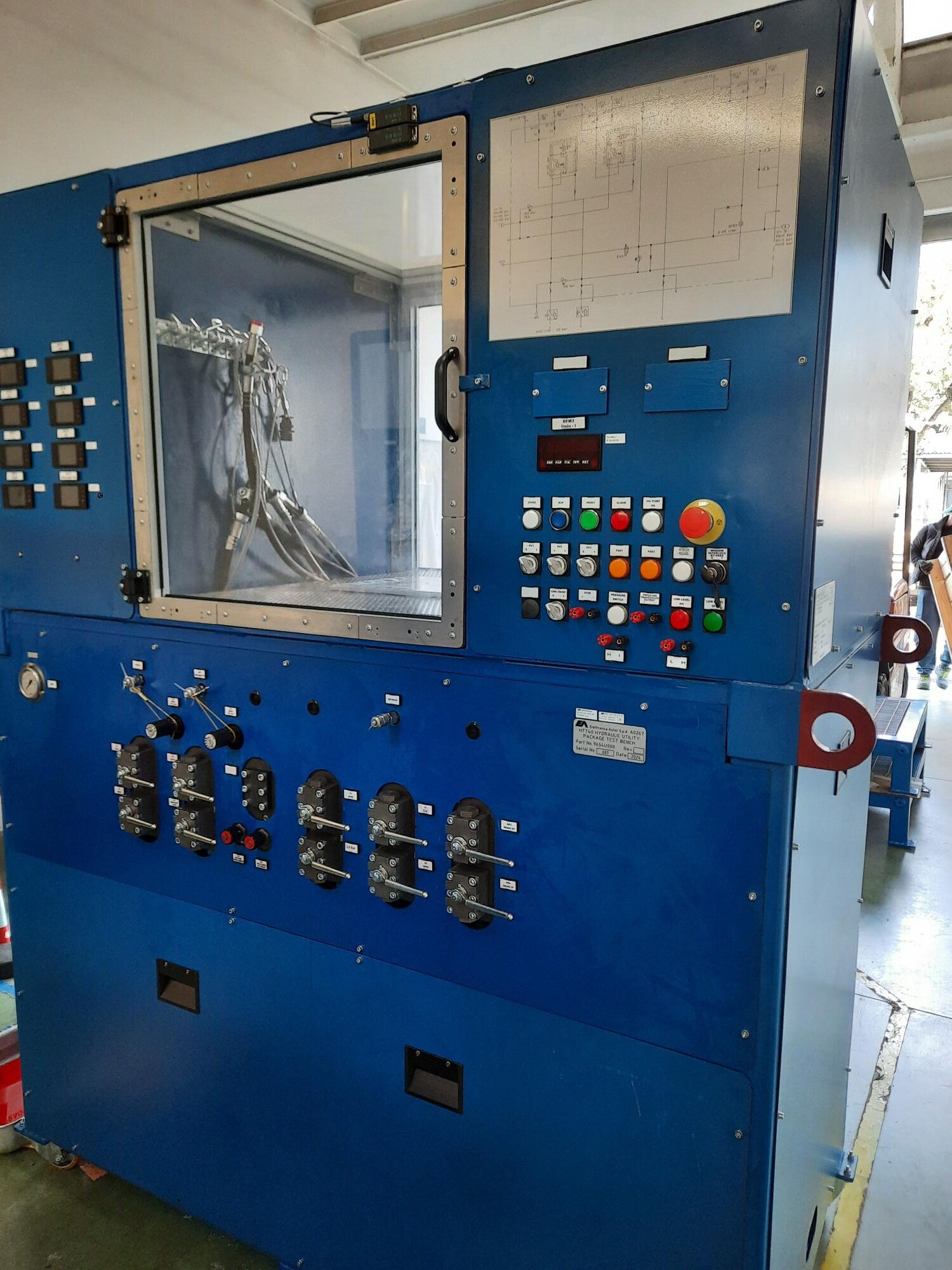

Test bench for aeronautics components

Test rig for Acceptance Test Procedure designed for aircraft components, namely Hydraulic Utility Package and Landing Gear Retraction Manifold.

Main characteristics

Hydraulic manifold block with manual commands, pressure, temperature and flow sensors.
Working fluids: MIL-PRF-5606 /-83282 /-87257
Hydraulic working pressure: 0-310 bar
Oil filtration, 3 micron absolute.
Digital display for pressure transmitters, temperature probe and flowmeter.
Oil reservoir with automatic recovery of drain oil to main tank.
Safety fences with SIL3 monitored window.
Electrical cabinet with both industrial and aeronautical interfaces.

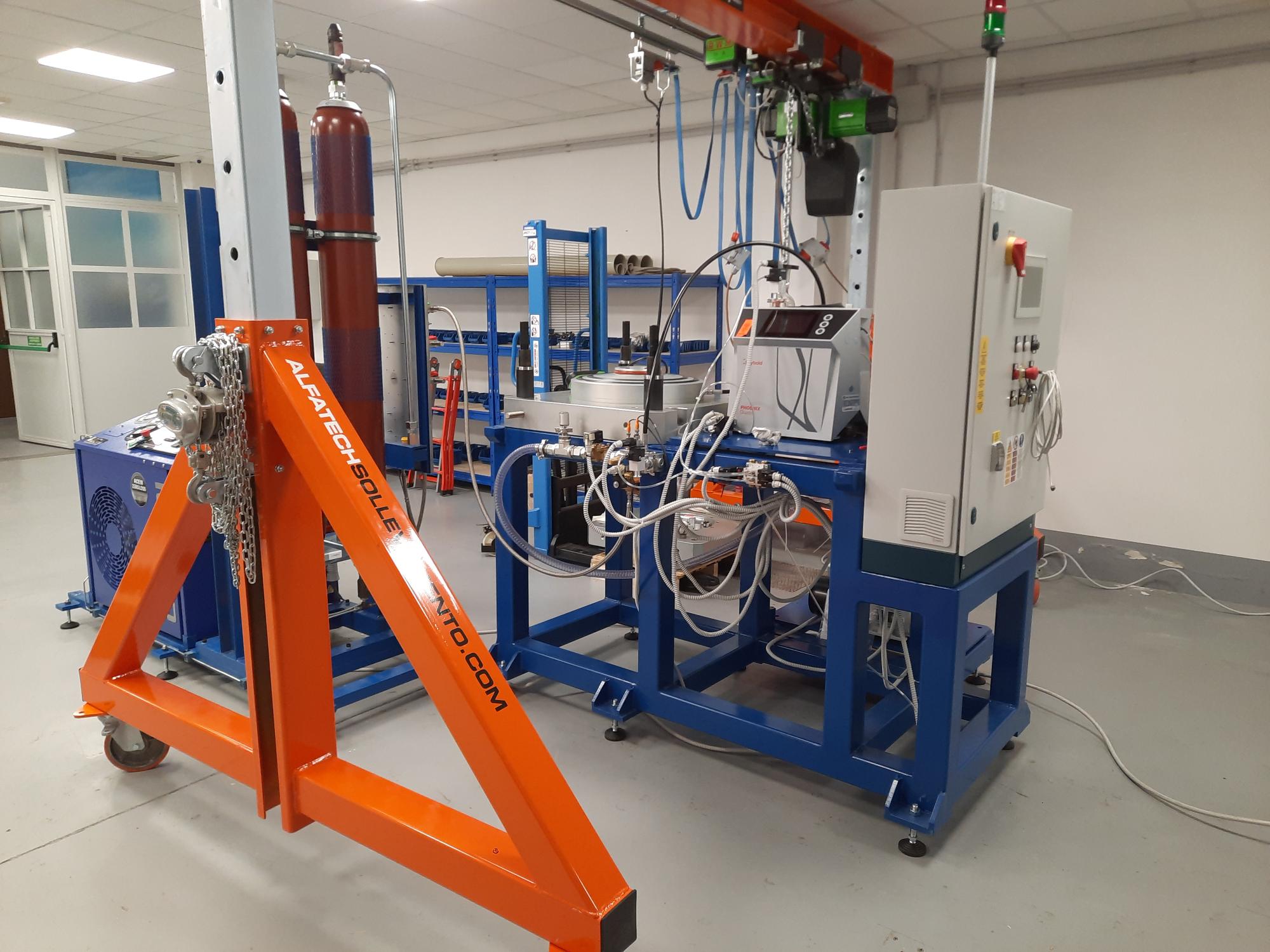

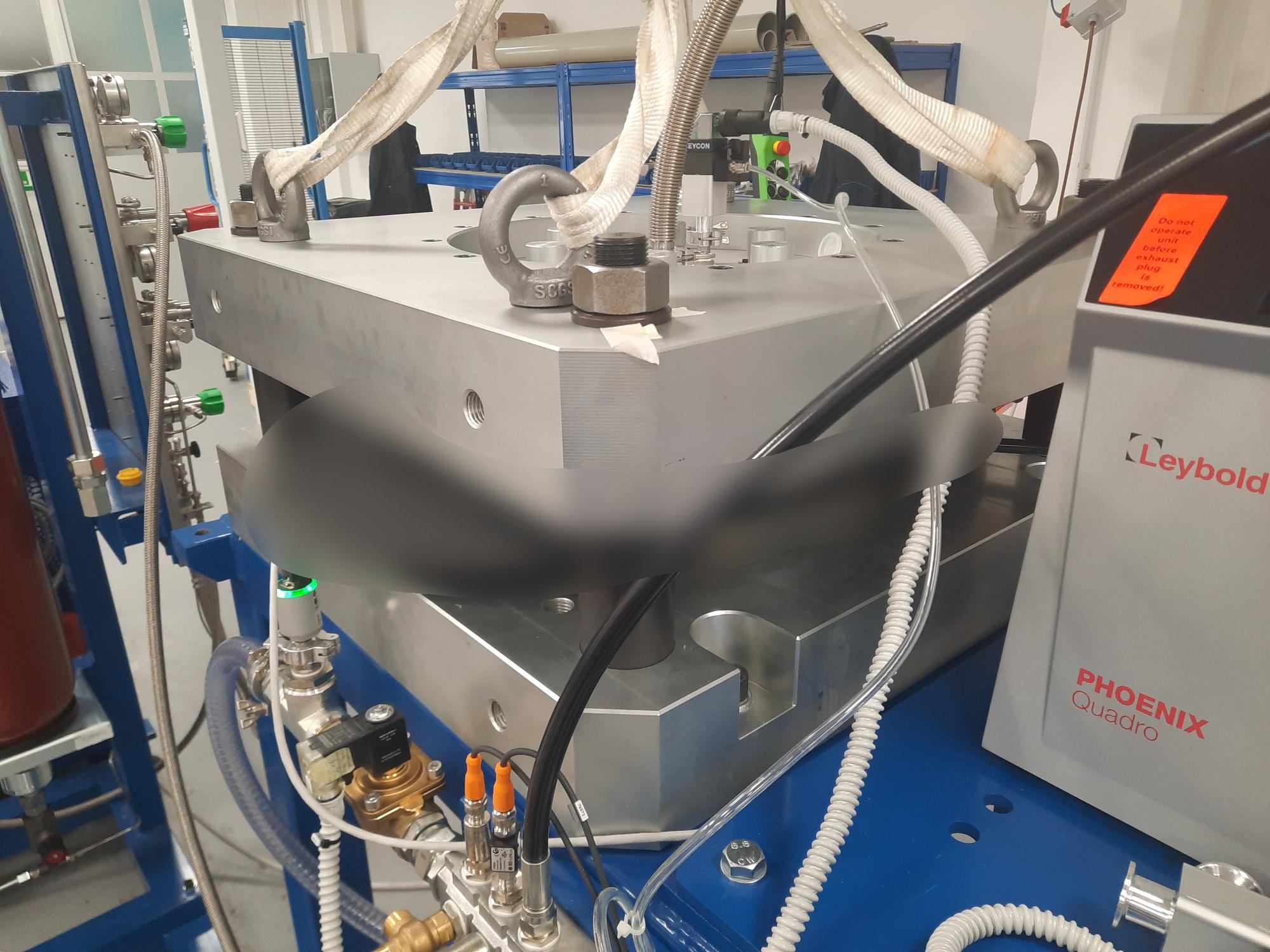

Helium gas-tight test bench for space launcher propellant reservoir plugs

Test rig conceived to assess propellant reservoir plugs by means of Helium gas: an aluminium mould creates a double room among which the sepcimen is placed, one room for Helium pressurization under the specimen and the second room for vacuum generation above the specimen, an high-definition spectrometer detects and measure Helium leakage across the specimen put in between the pressurized room and the vacuum room.

Main characteristics

Specimen: propellant reservoir plugs.
Purposely designed aluminium mould to host the specimen and creating a double gas-tight rooms under and above specimen.
Helium zero loss compressor: 0 – 300 bar.

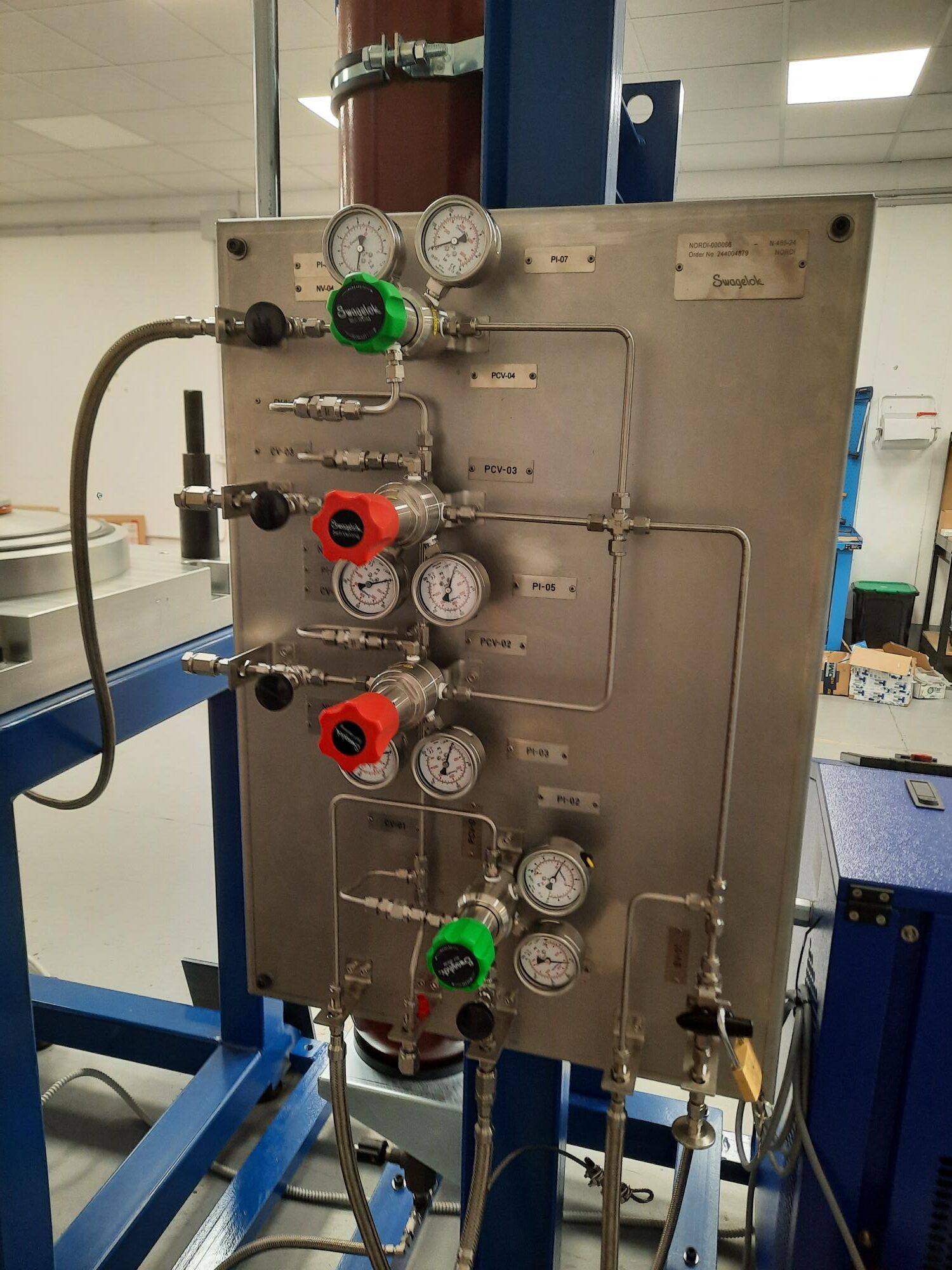

Helium control valves panel and tank: pressure reducing valves, manometers, 100 l tank, gas-tight piping.
Leybold vaccum pump for air suction up to 5E-3 mbar.
Leybold mass spectrometer for Helium leakage detection and measurement up to 10E-12 mbar x l/min.
Automatic procedure controlled with Bosch Rexroth PLC.

Fatigue test bench for helicopter landing gear

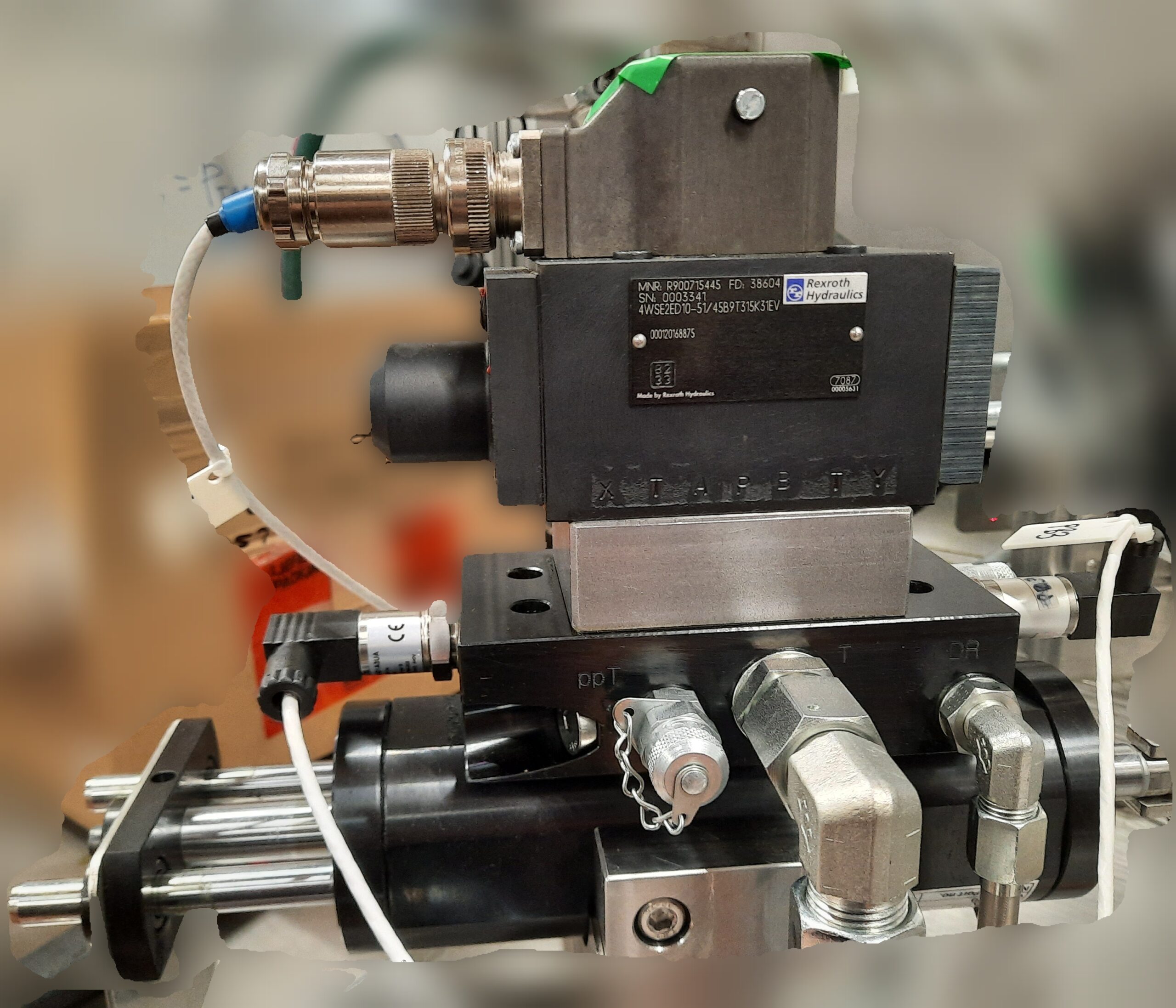

The requirement is to stress the landing gear with fatigue cycles, in order to envisage its behaviour along expected working life, at such purpose an hydraulic servocylinder is used for closed-loop position/force control, equipped with servovalve on-board, load cell and internal LVDT.

Main characteristics

performance: up to 100 kN at 5 Hz
Bosch Rexroth servovalve
damping accumulators on both P and T lines
passive load-abort devices

Electro-mechanical actuators and control for railways applications

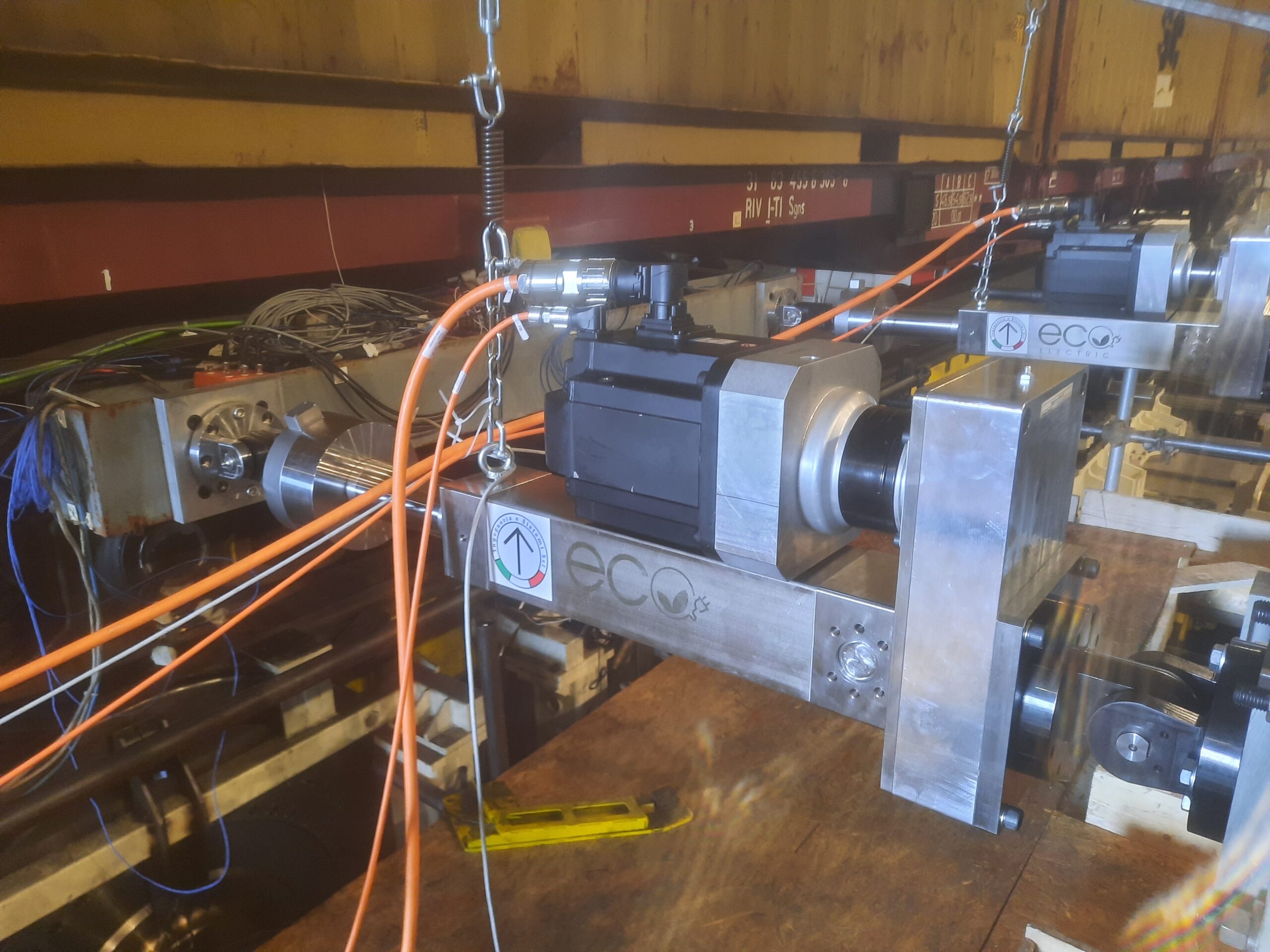

Double 50 kN electro-mechanical actuators purposely design to create side-load to to a train wagon running on roller test bench.

Main characteristics

50 kN push/pull actuator.
trasmission made with planetary gear roller-screw.
rigid reduction gear.
Bosch Rexroh synchronous servomotor with absolute encoder.
Push/pull load cell.
Anti-backlash swivel clevis both ends.
Electrical cabinet with Bosch Rexroth Motion Logic Controller and Drives.

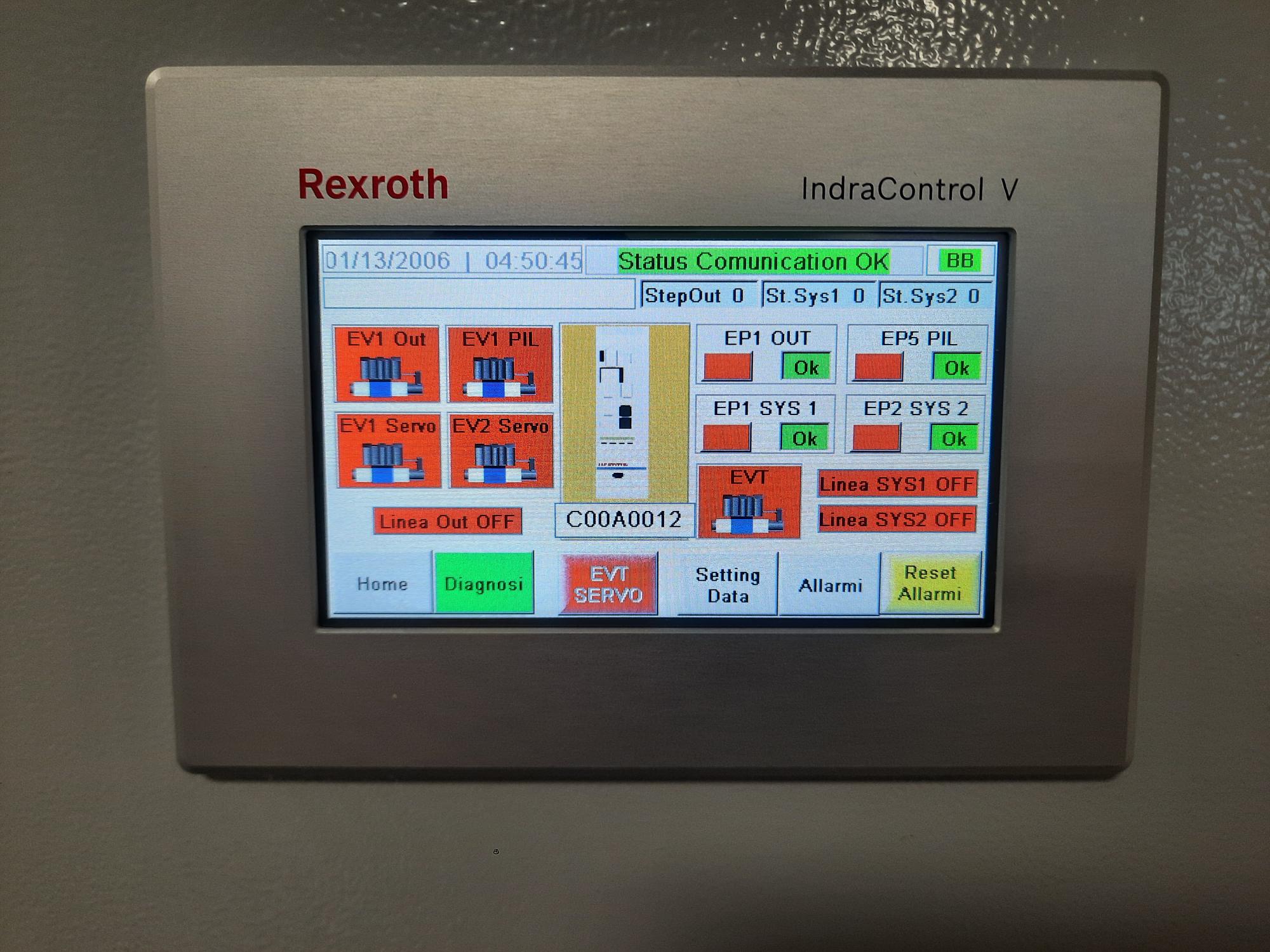

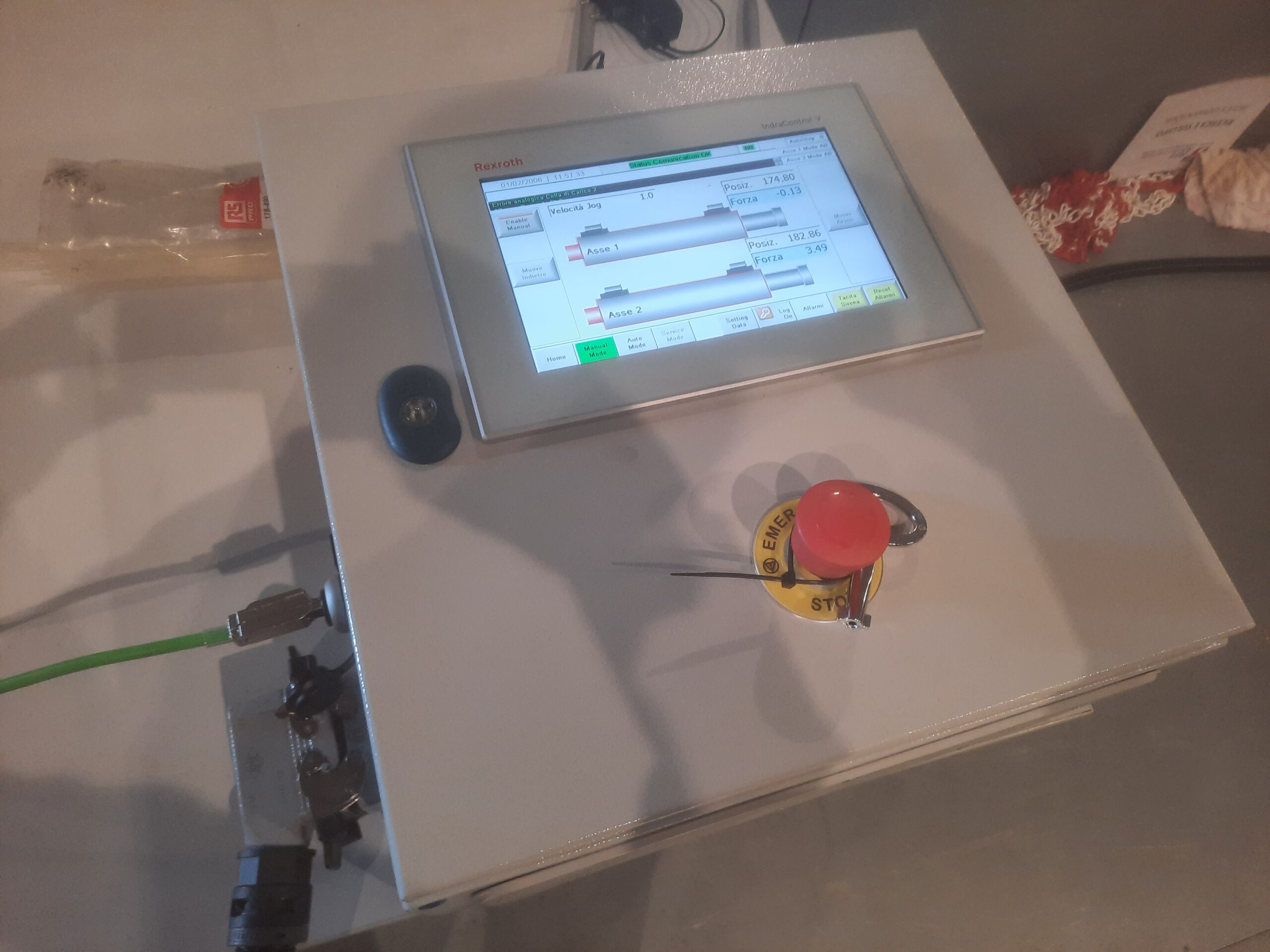

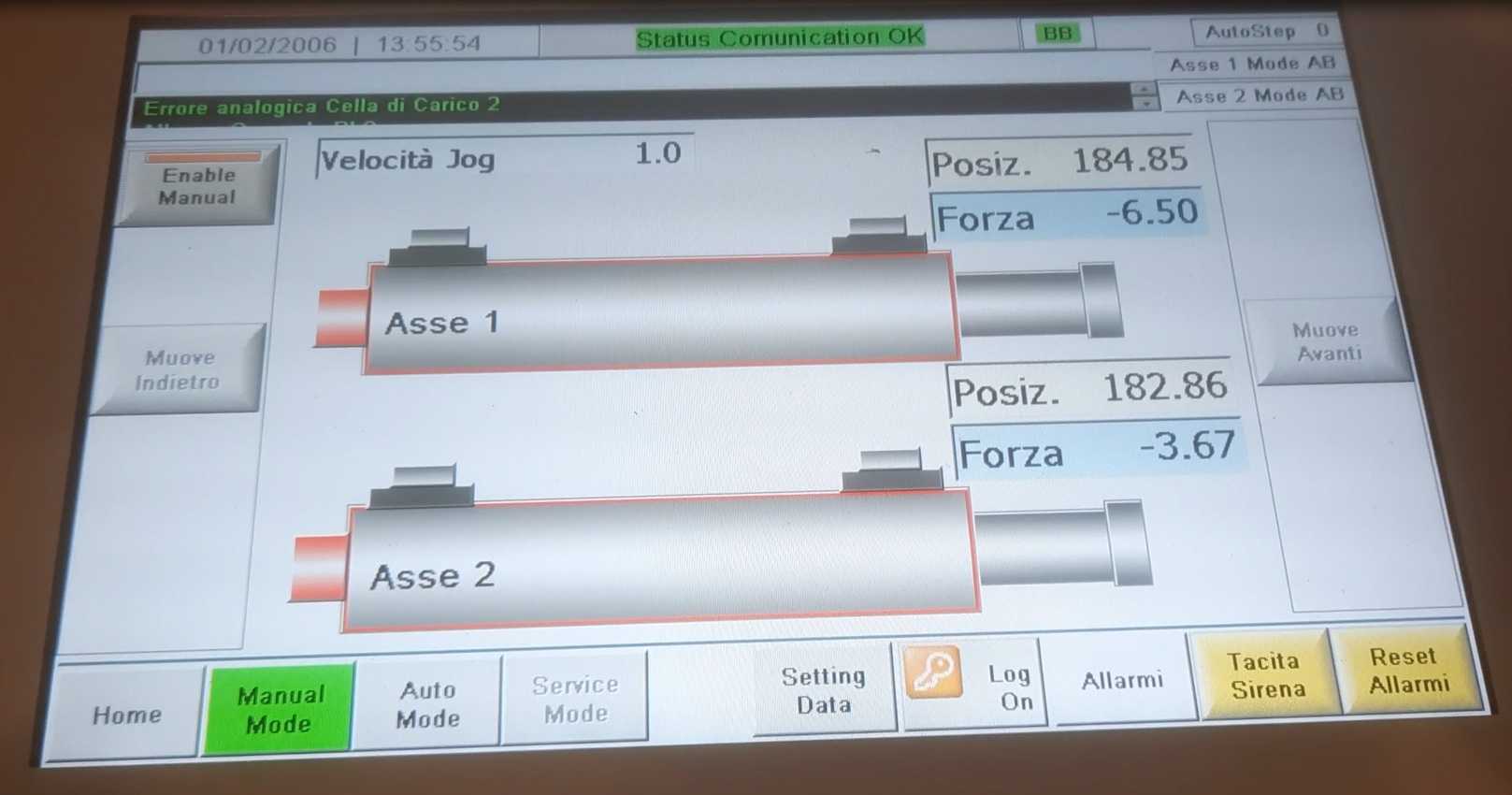

Electrical remote box with touch-screen operator control panel.

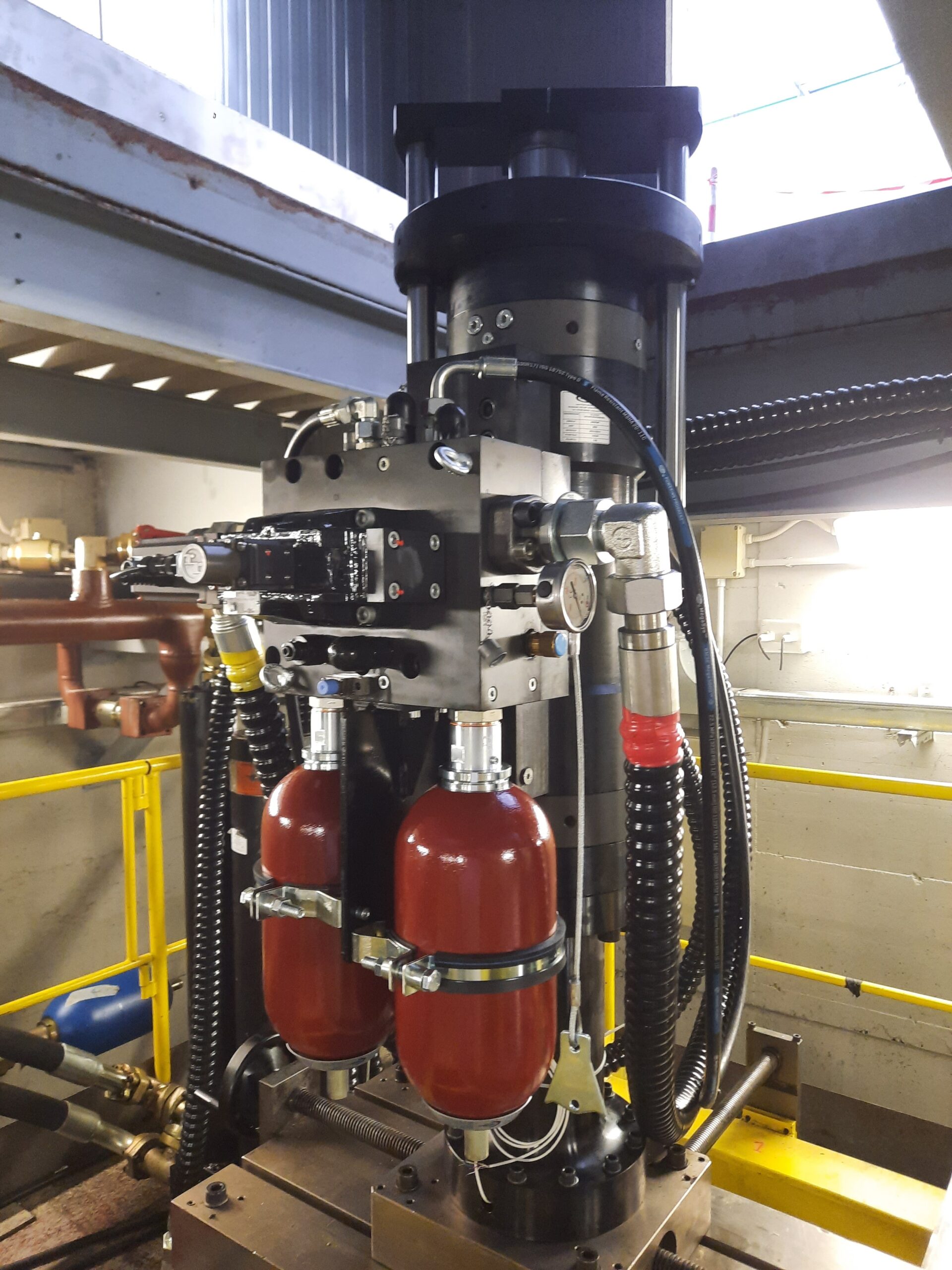

4-poster road simulator

4 hydrostatic servocylinders for road simulation.

Main characteristics

Hydrostatic servocylinder fitted with anti-rotation device.
Bosch Rexroth servovlave.
Damping accumulators with PED safety valve.
LVDT sensor inside cylinder rod.
Passive load-abort devices.

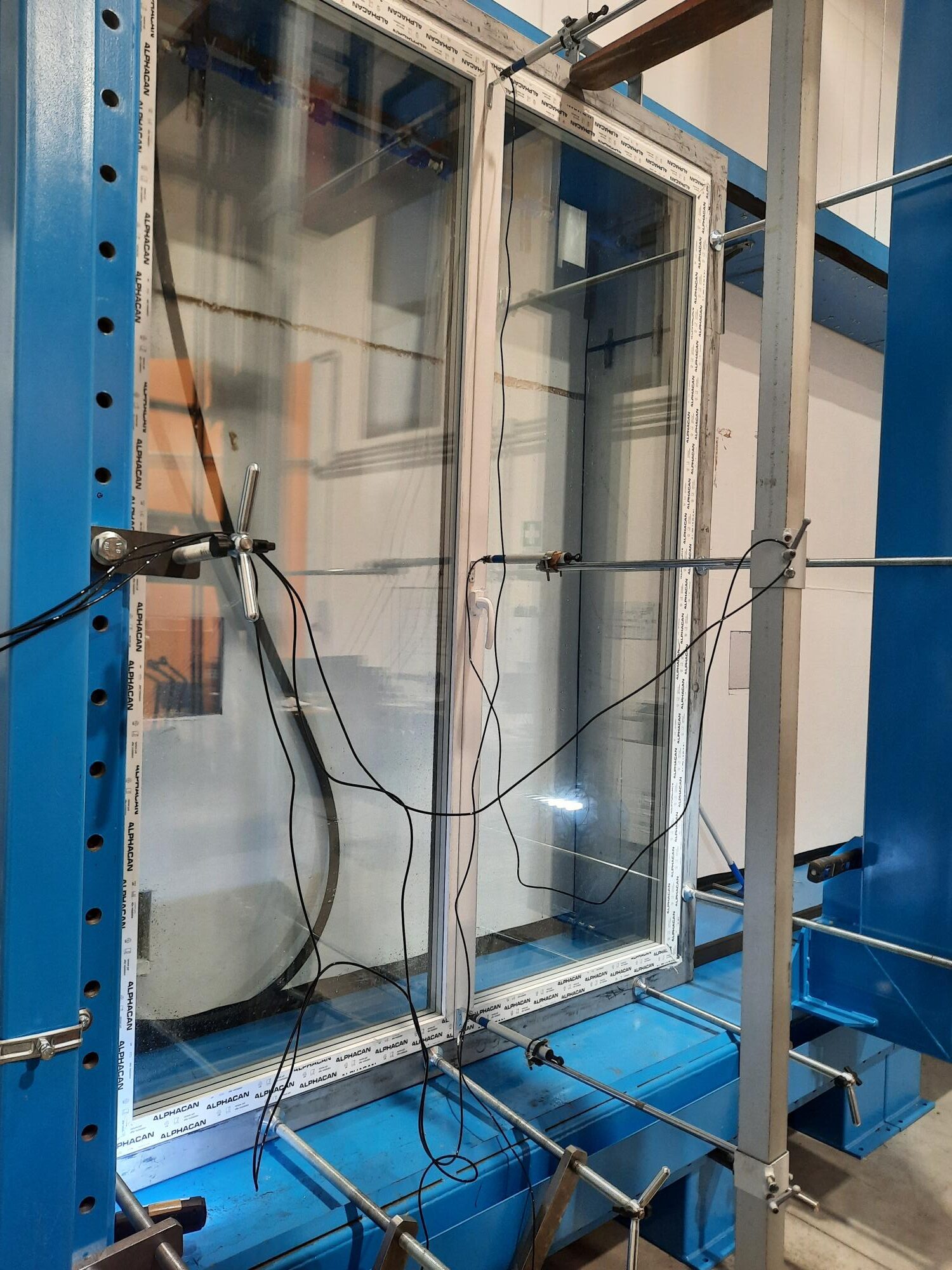

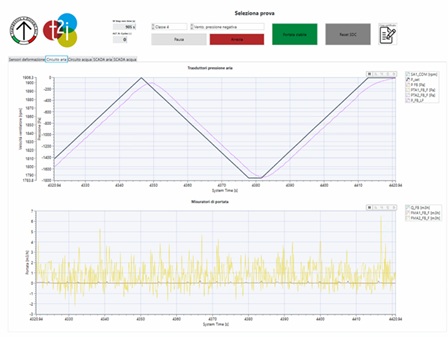

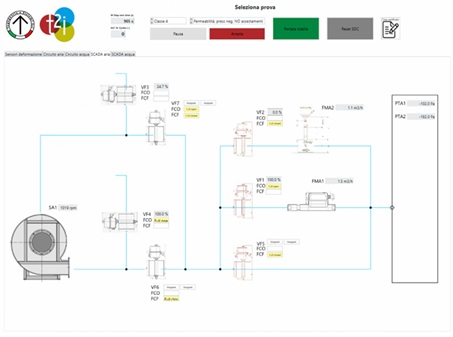

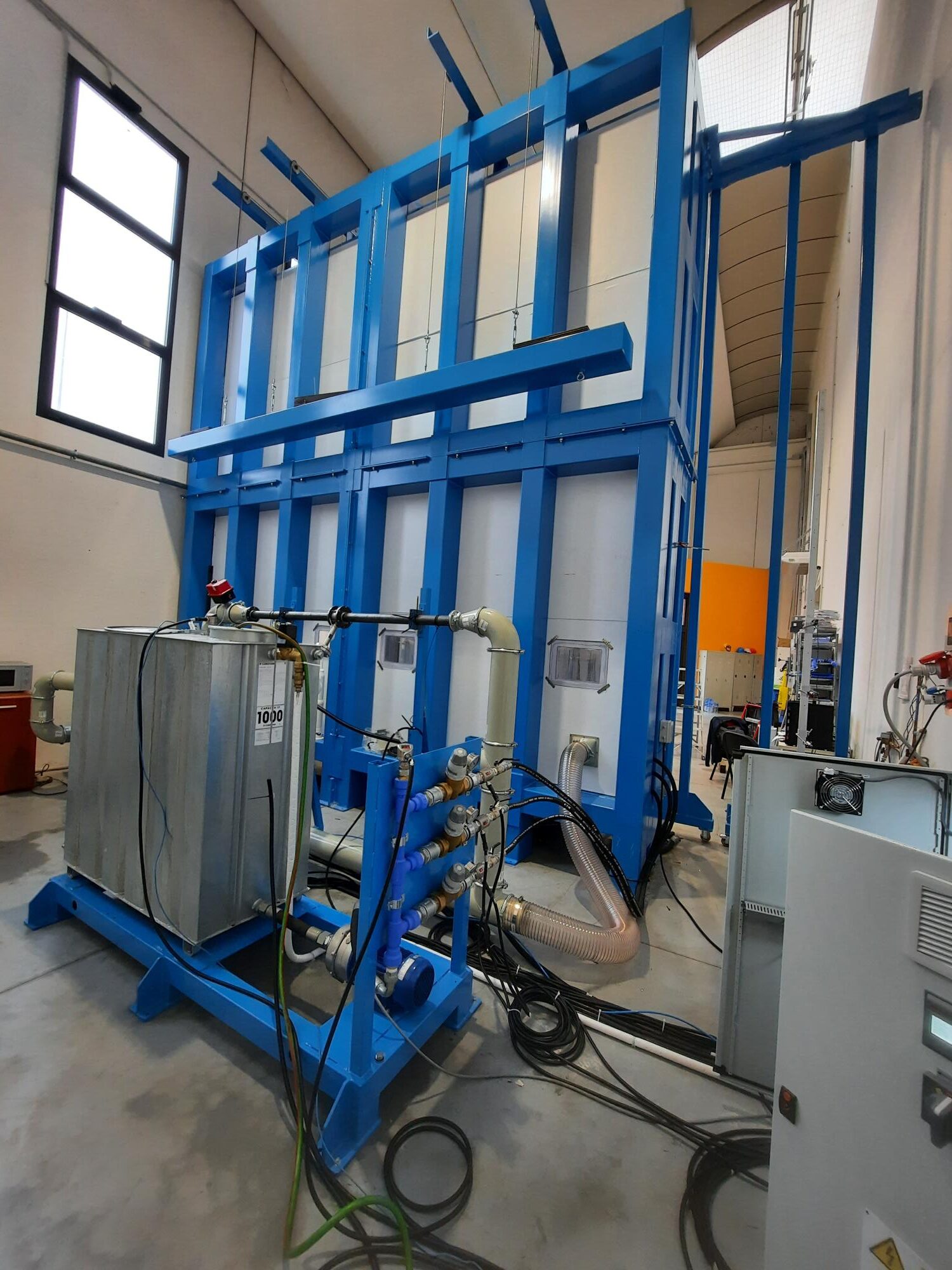

Windows, doors and facedes test bench

Test rig is designed to perform certification tests on windows, doors and facades, according to european norms and standards, namely:

air permeability,
water-tightness,
resistance to wind load.

Main characteristics

5×5 m test chamber.
automatic air circuit for pressurization level up to +/- 7000 Pa.
automatic water circuit with 3 rows calibrated nozzles.
real time controller and data acquisition system.
certified measuring sensors: pressure, flow, temperature, displacements.

Hydraulic Power Units

Hydraulic Power Units are normally designed accordingly to customer specification, in order to meet oil delivery, pressure and dimensional limits requirements.

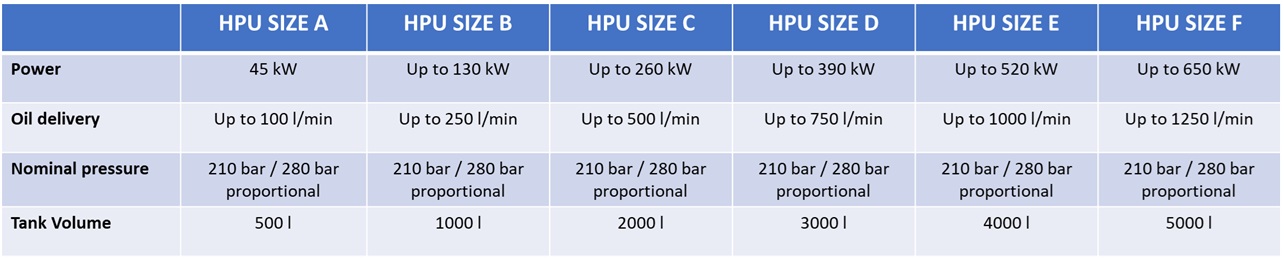

Standard and silenced HPU are equipped with Bosch Rexroth pumps and can be connected tank-to-tank for parallel working; in the table here below their main charachteristics.

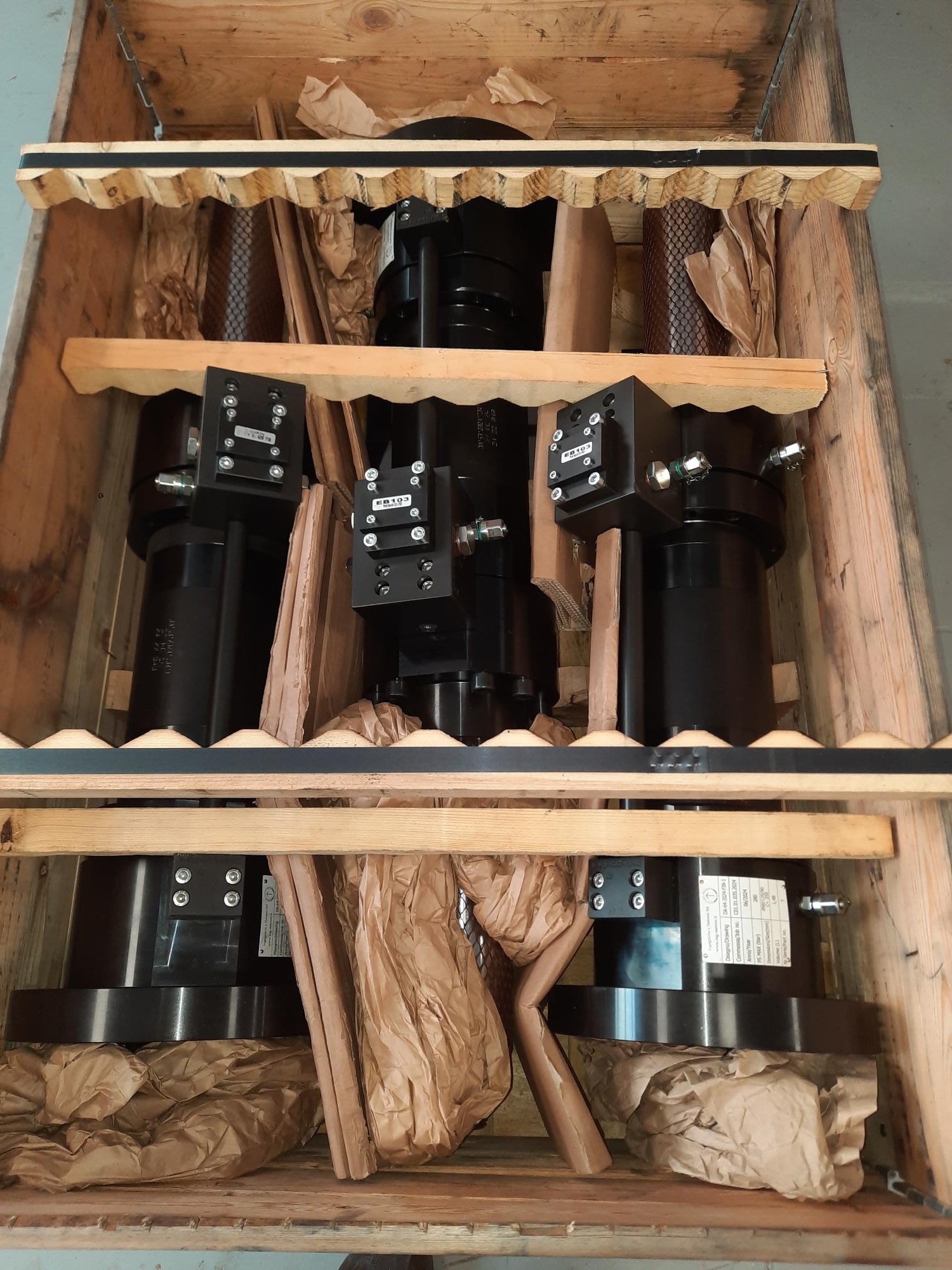

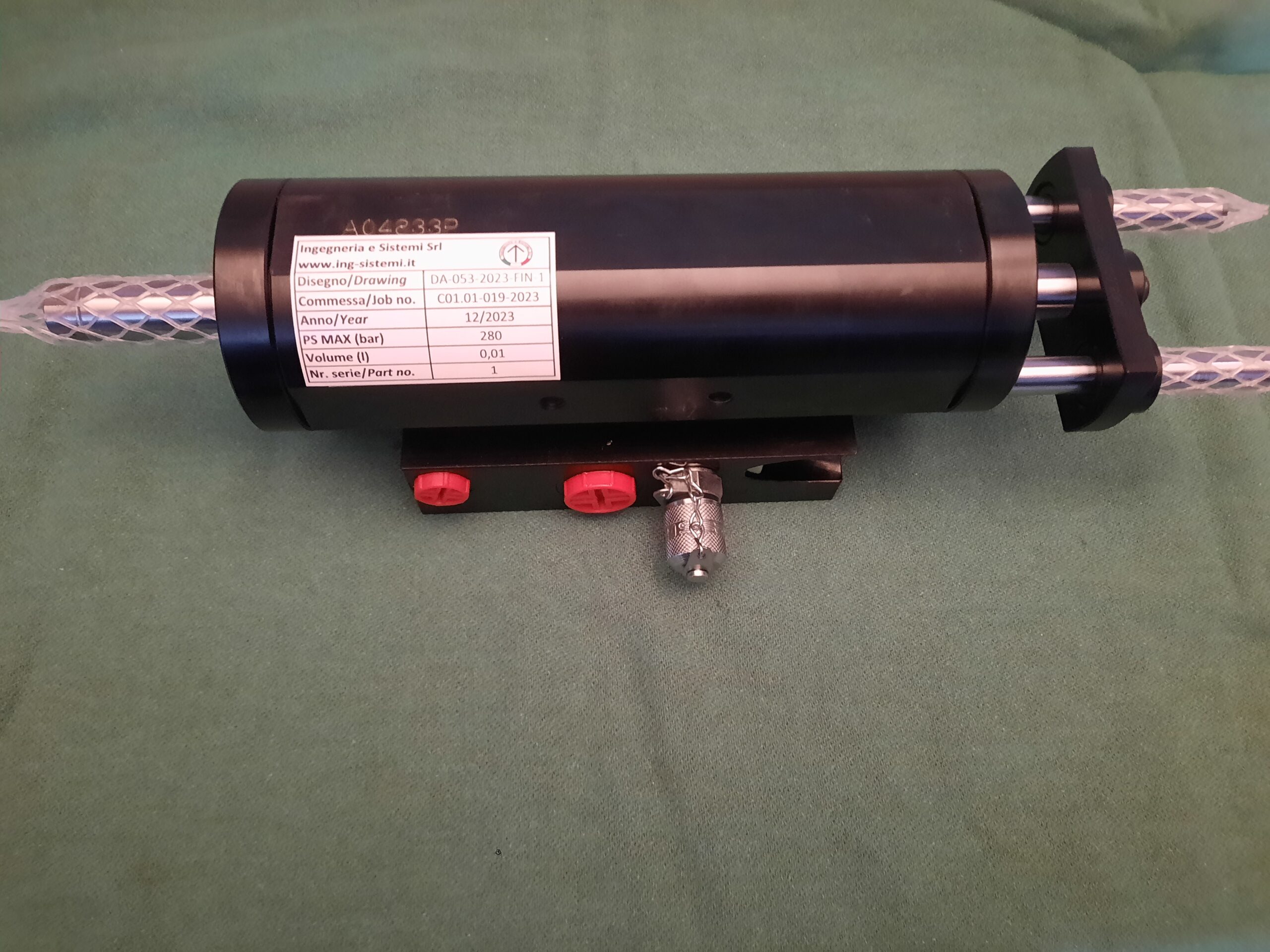

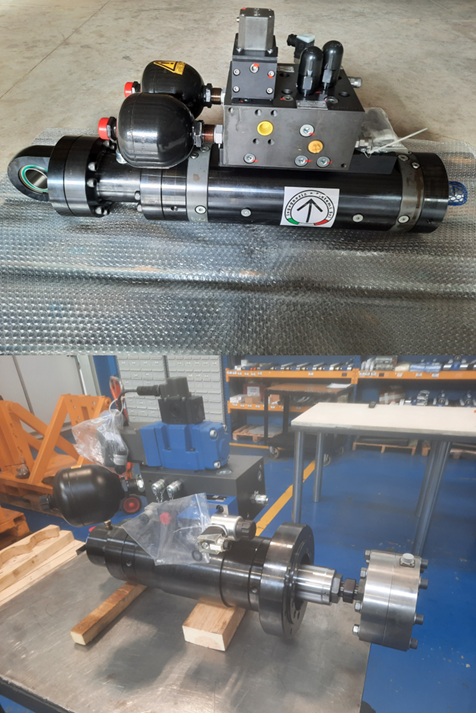

Hydraulic servocylinders

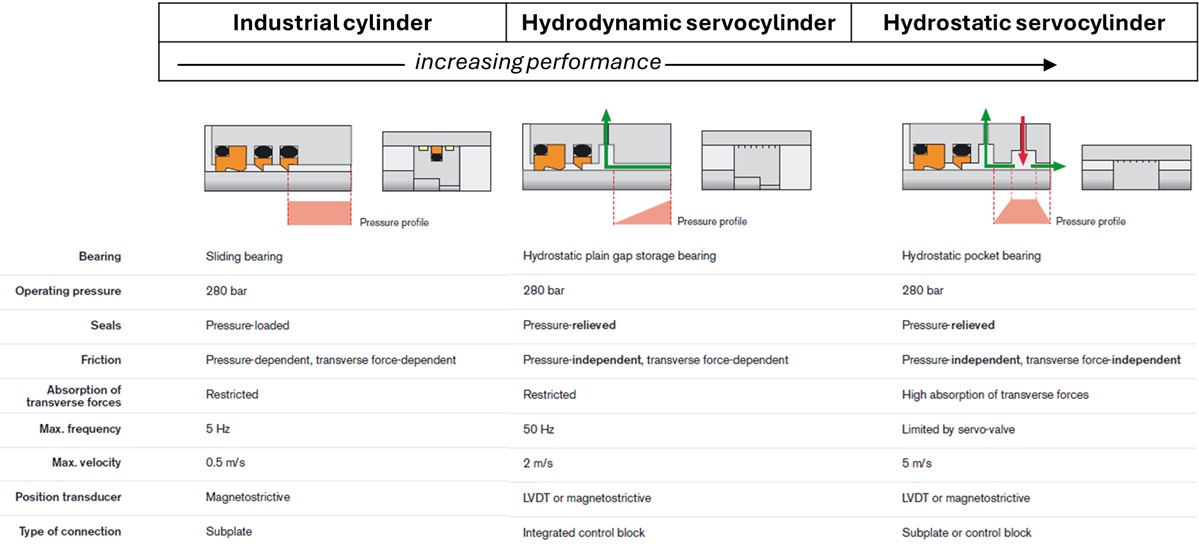

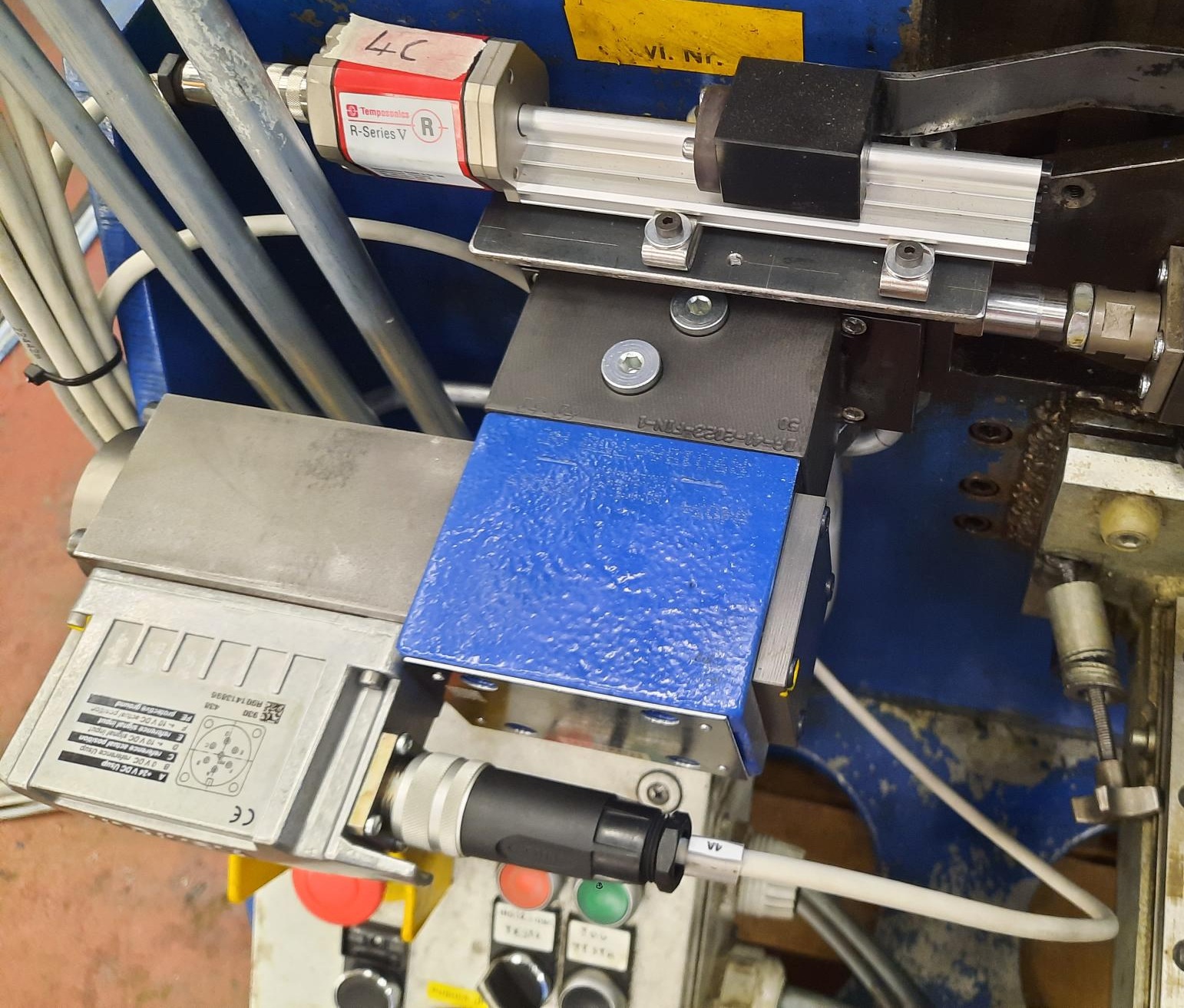

Conceived for dynamic position/force actuation, our cylinders can be designed in different technologies according to application requirements:

hydrostatic servocylinder with pressurized oil pocket bearings (negligible friction, side-load admissible).
hydrodynamic servocylinders with autolubricated bushes (negligible friction, side-load admissible).
hydrodynamic servocylinders (negligible friction, side-load not-admissible).
industrial cylinder (robust and suitable for harsh environment).

All kind of cylinders can be equipped with servovalve on-board, load cell and position transducer (analogue, SSI, LVDT).

Working fluids:

mineral oil according to DIN 51524
military standard MIL-PRF-5606 /-83282 /-87257
Skydrol for civil aviation

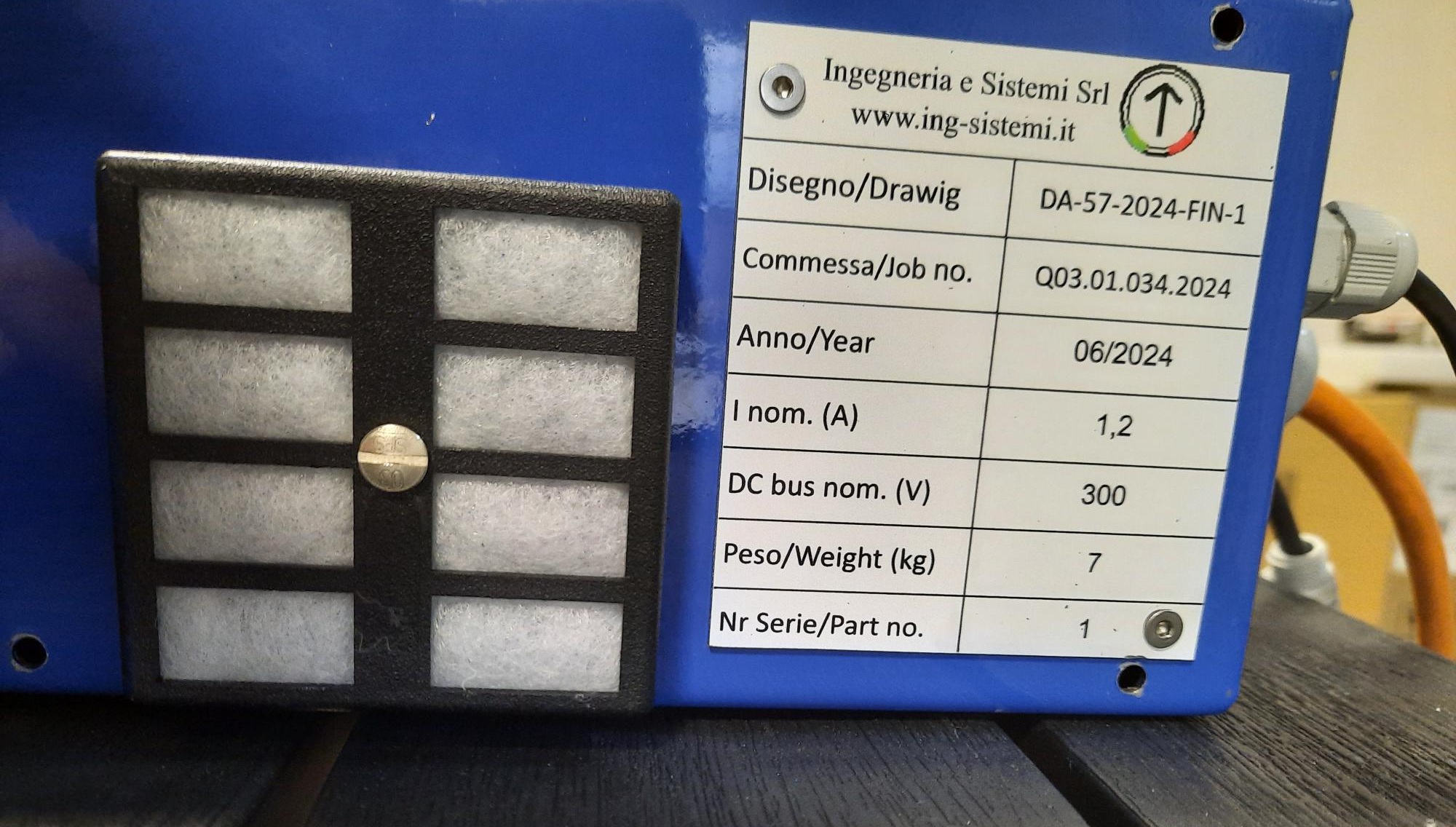

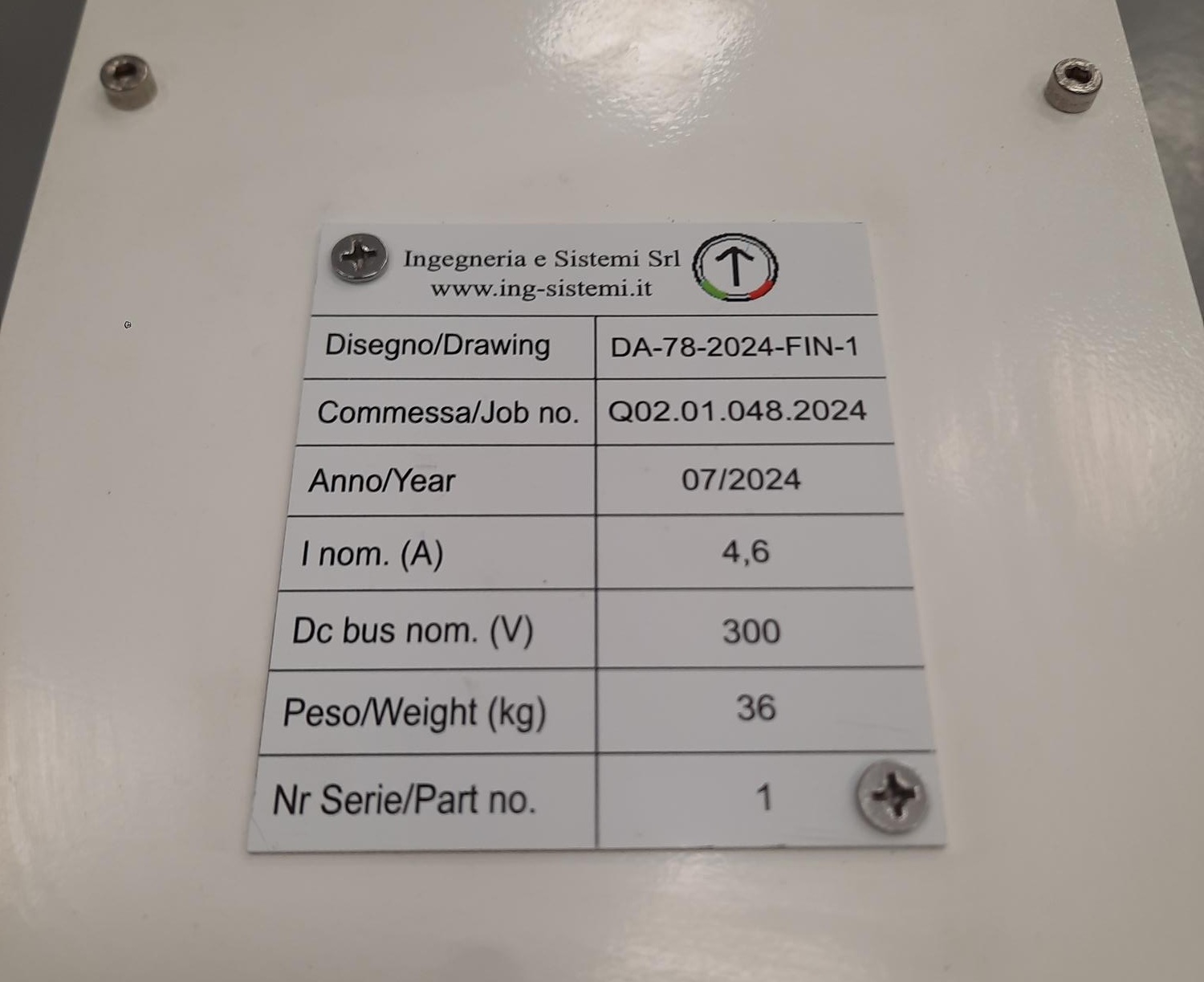

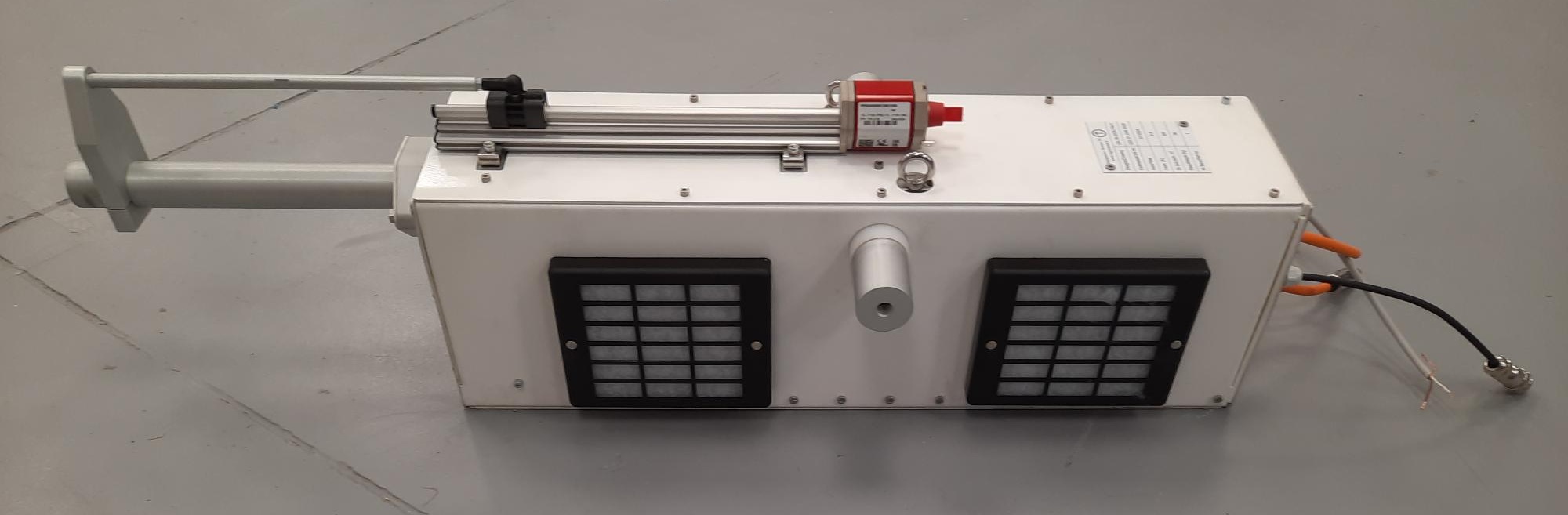

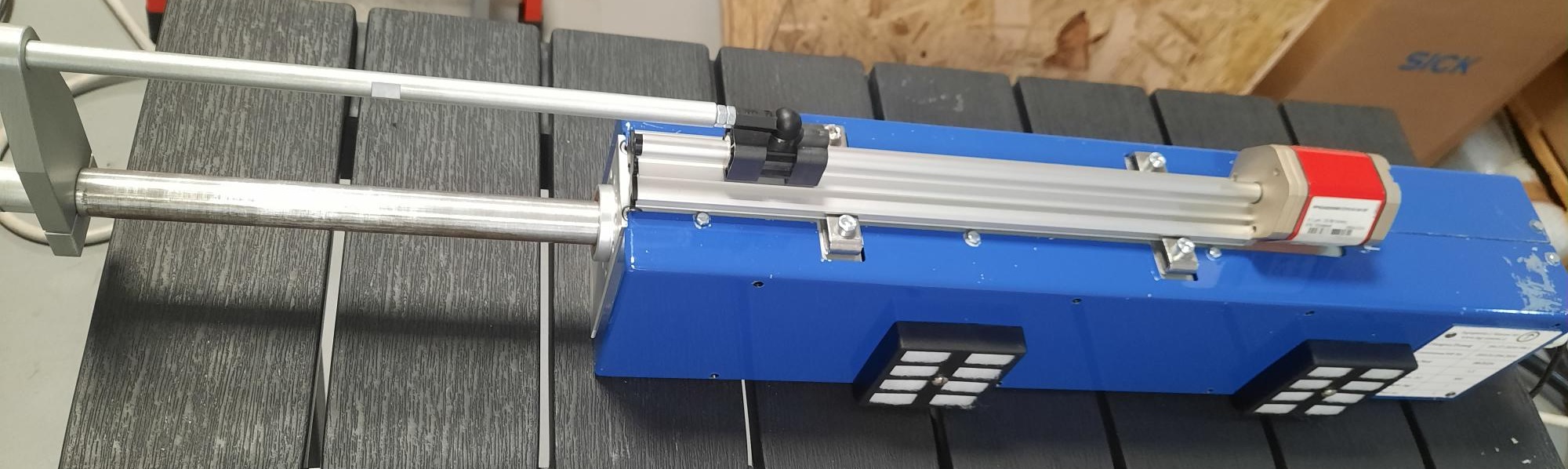

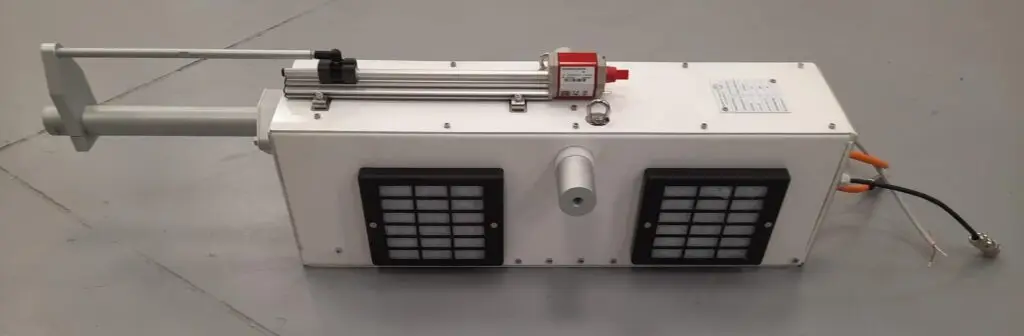

Electro-magnetic linear motors

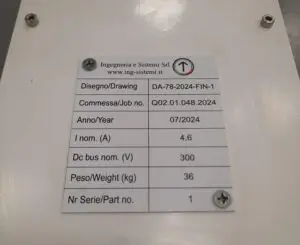

Linear motors are synchronous permanent magnet electric actuators, their negligible friction and high-stiffness allow an high-fidelity actuation in position/force closed-loop control, particularly suitable to apply small forces, approx. < 1000 N, with speed rate ranging from very low to very high.

Typical application: aeronautics/automotive test benches for pilot simulation (stick and pedal actuation).

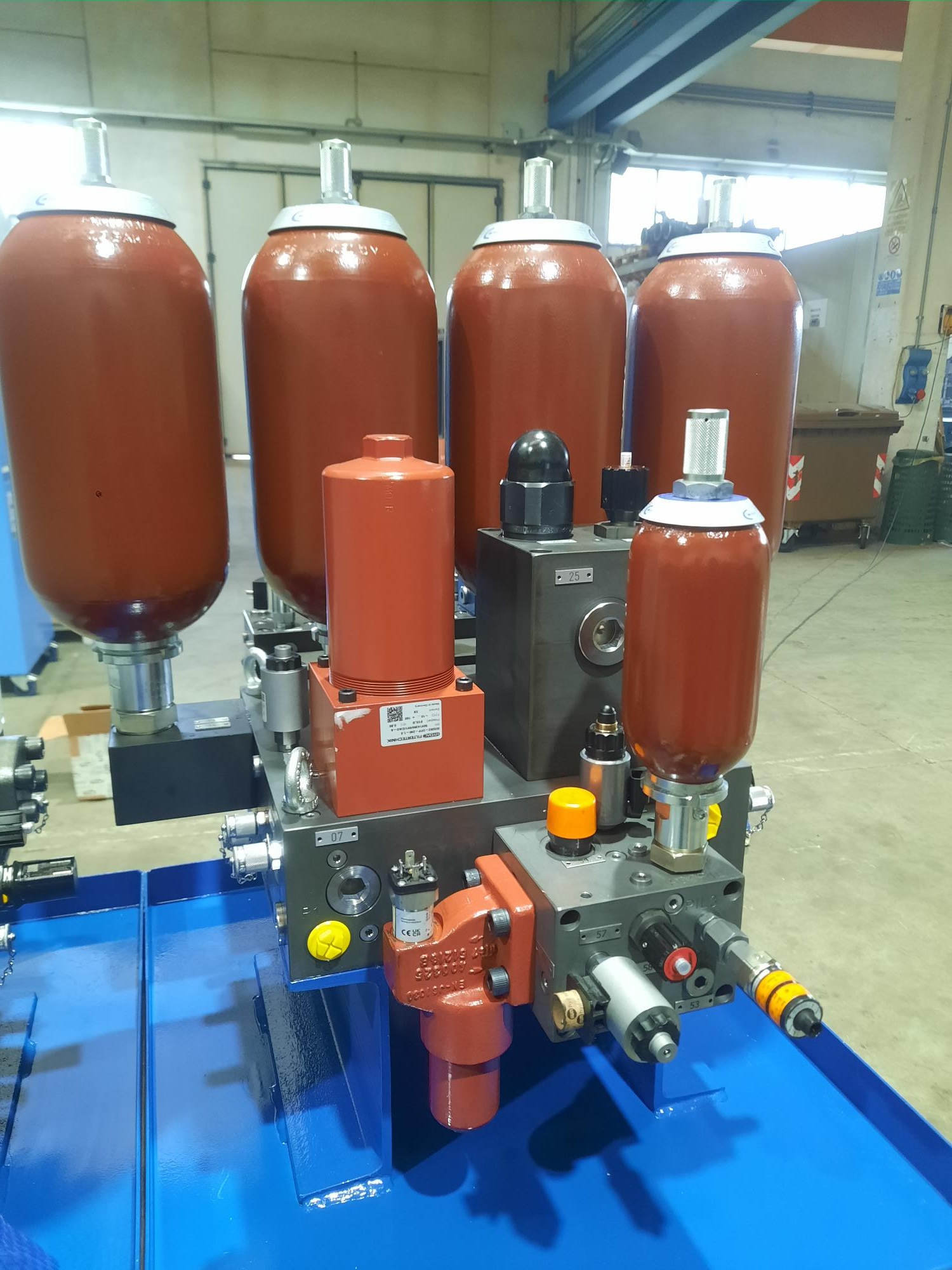

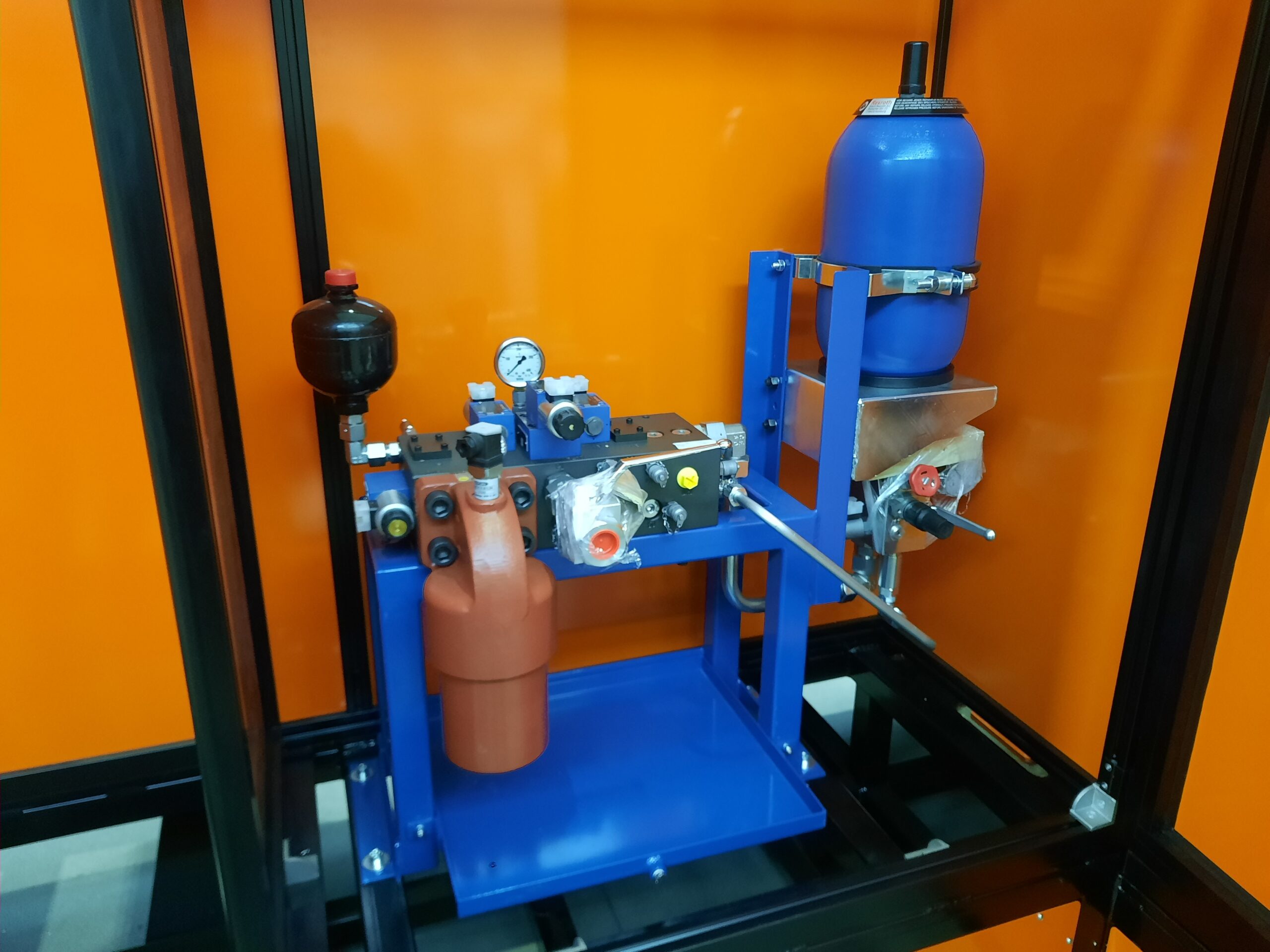

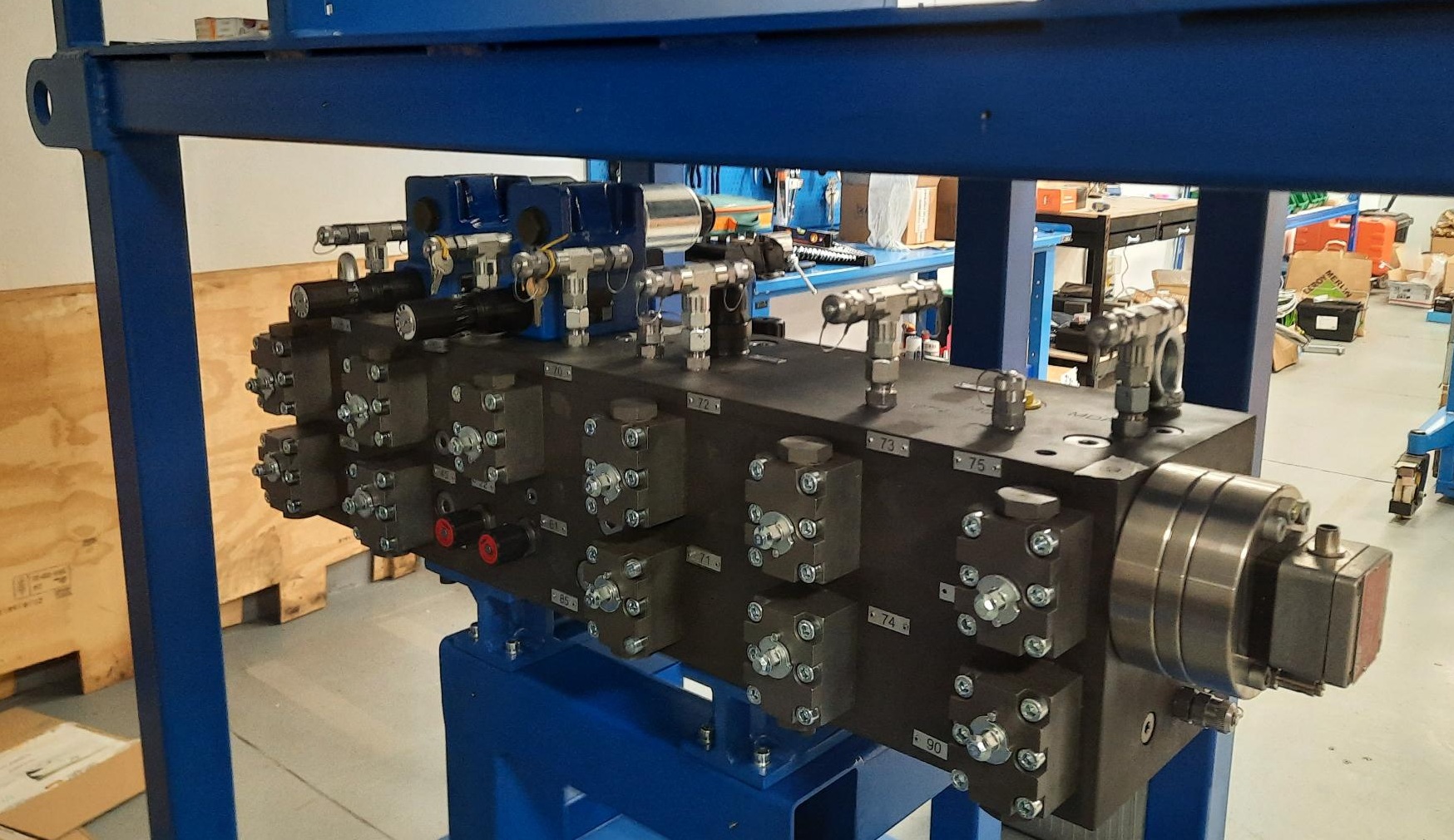

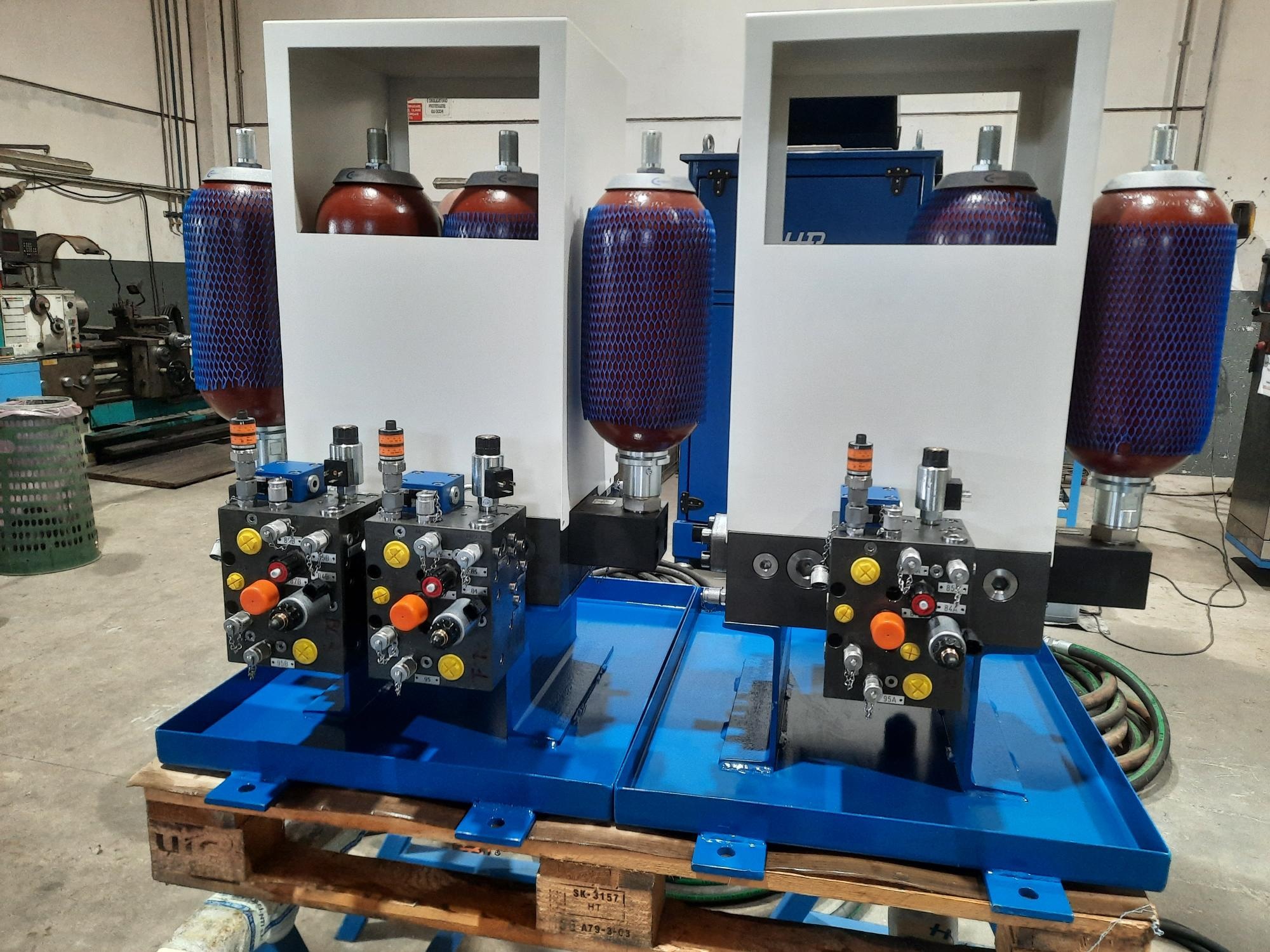

HSM Manifold and customized hydraulic blocks

HSM Manifold is a common solution for testing application, here below their main features:

OFF: no flow – no pressure; LOW: Max flow – low pressure; HIGH: Max flow – Max pressure
control by means of two 24VDC-30W digital commands.
pressurization and unload ramp time can be adjusted manually, in order to have a soft start/stop
available size: HSM50 (50 l/min) ; HSM100 (100 l/min) ; HSM200 (200 l/min) ; HSM400 (400 l/min) ; HSM800 (800 l/min)
available indipendent channels: from 1x to 4x (P-T-PIL-DR-HB)
available options: bladder accumulators for lines P-T-PIL, pilot block with filter, electro-proportional valve for remote pressure setting, counterpressure block for T line, pressure switch and/or analogue pressure tansmitter.

Customized manifold blocks are available and designed according to customer application.

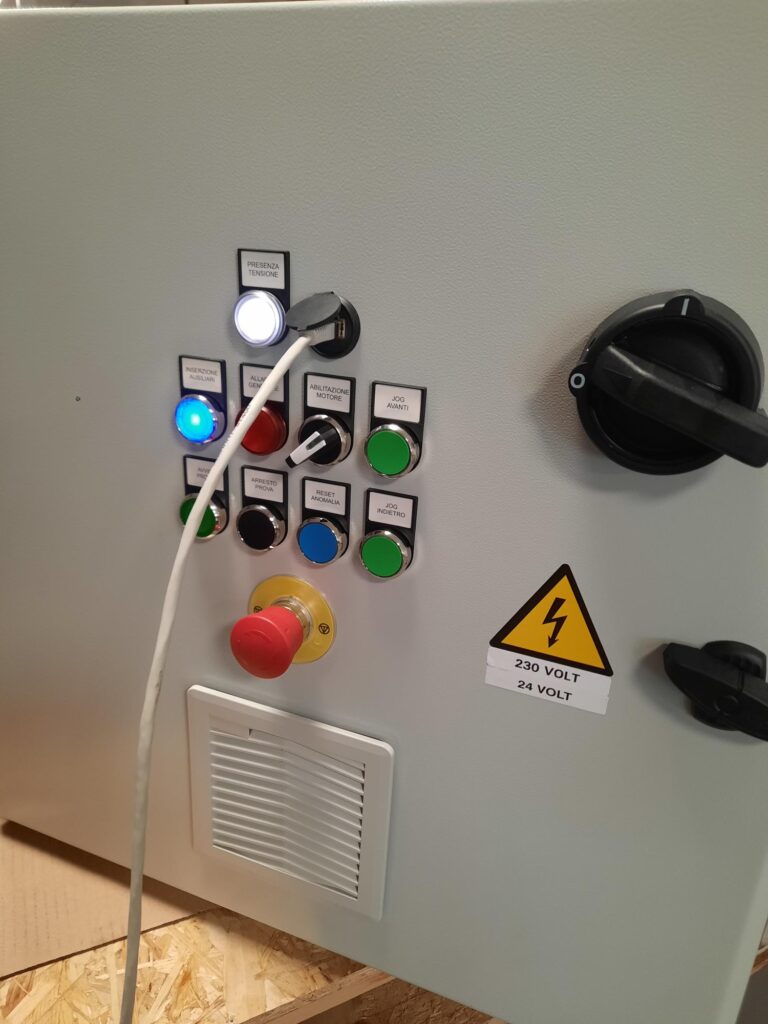

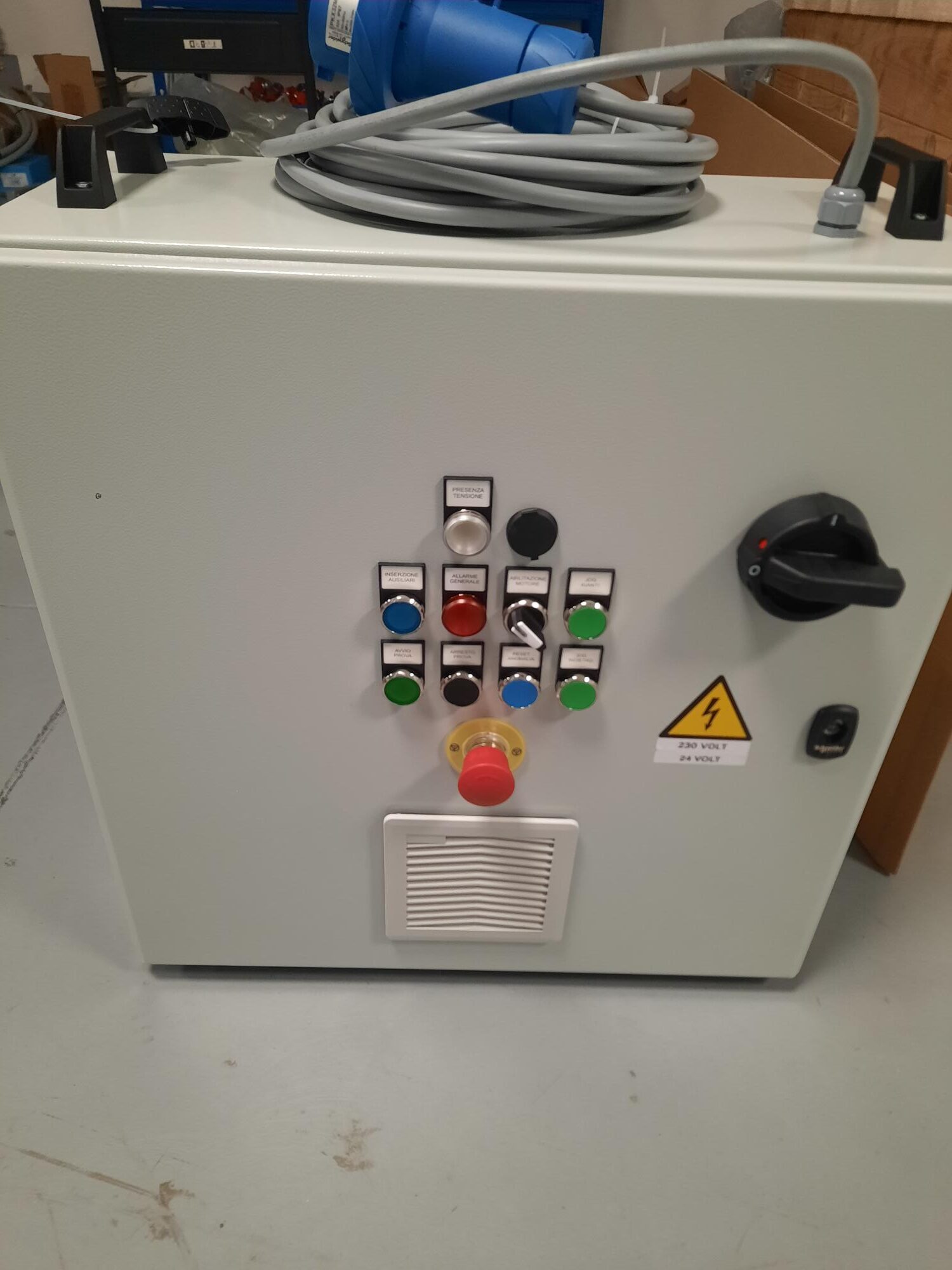

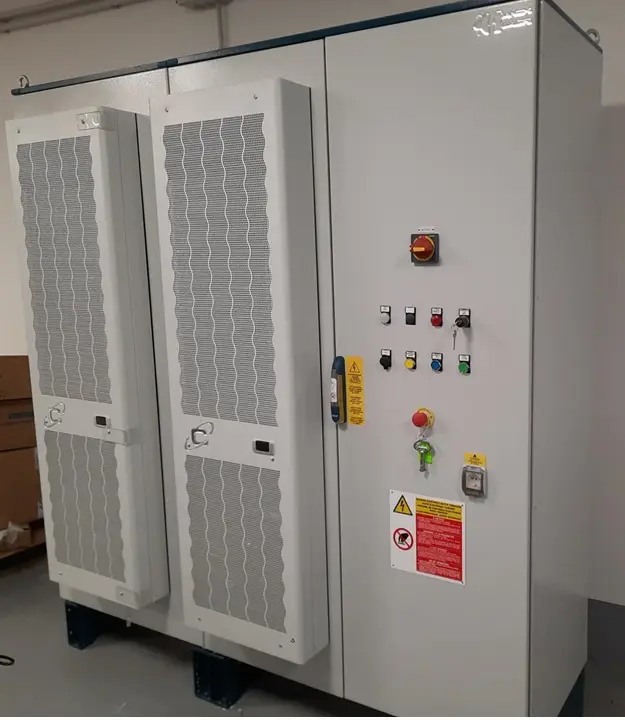

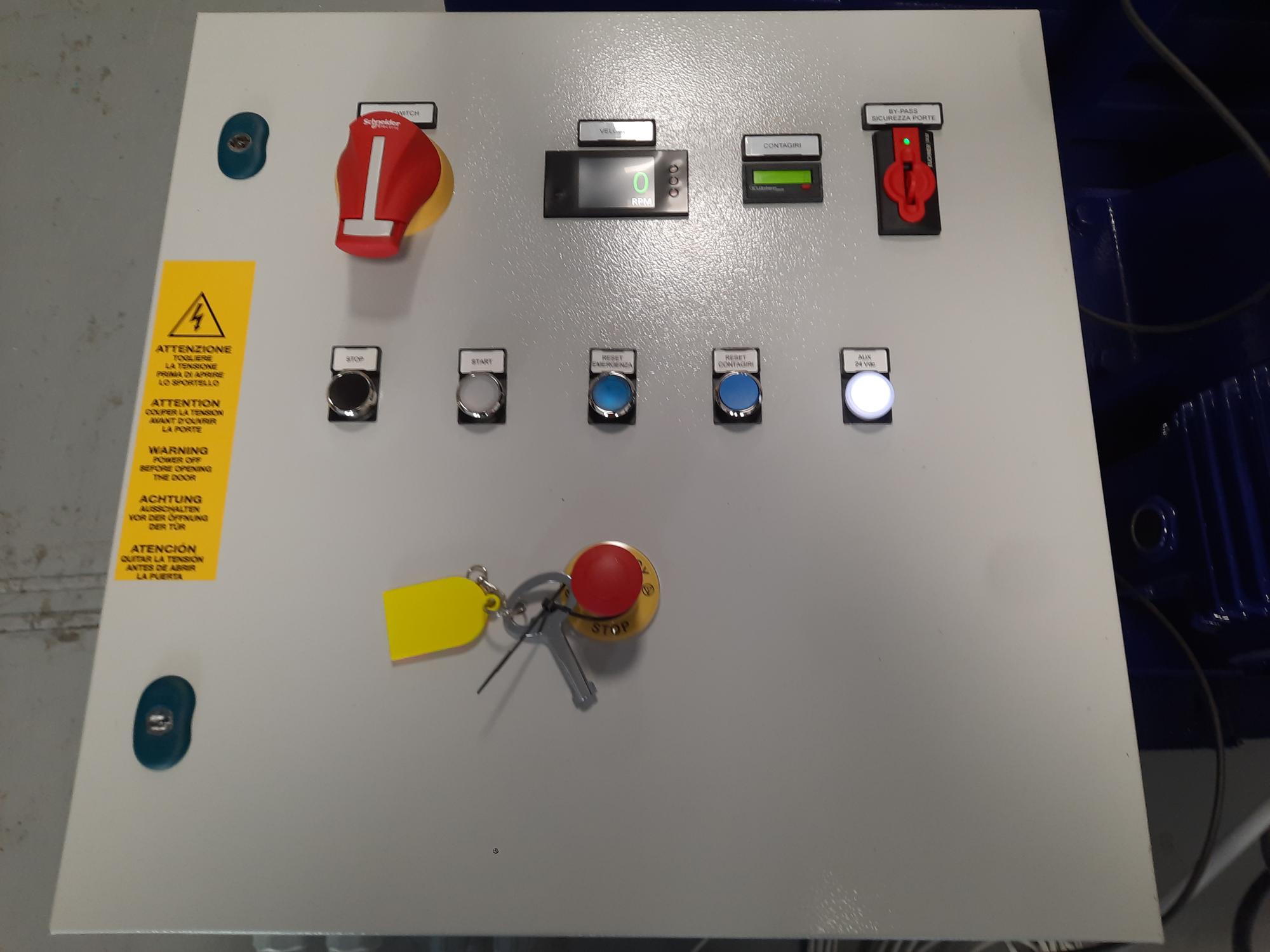

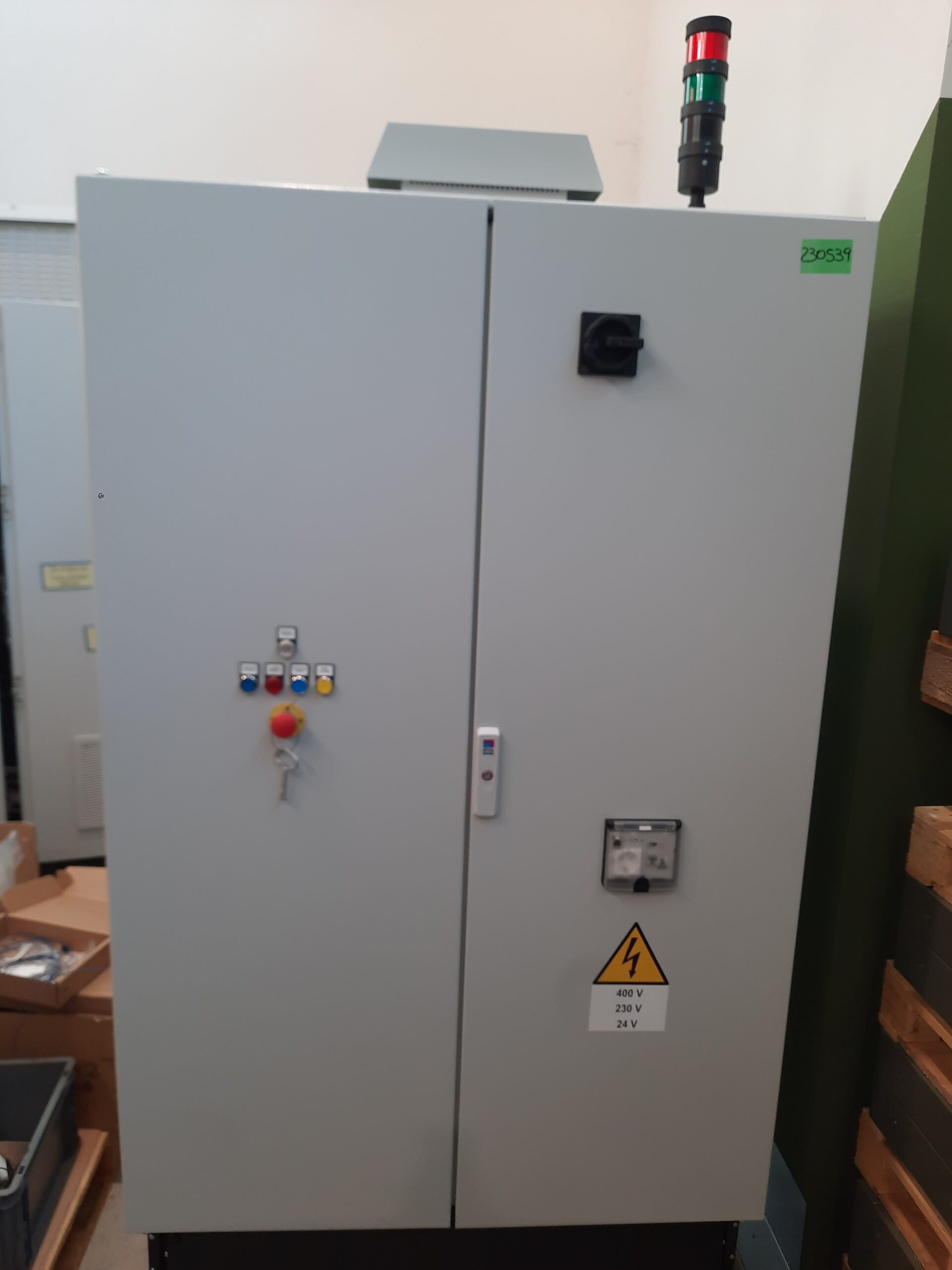

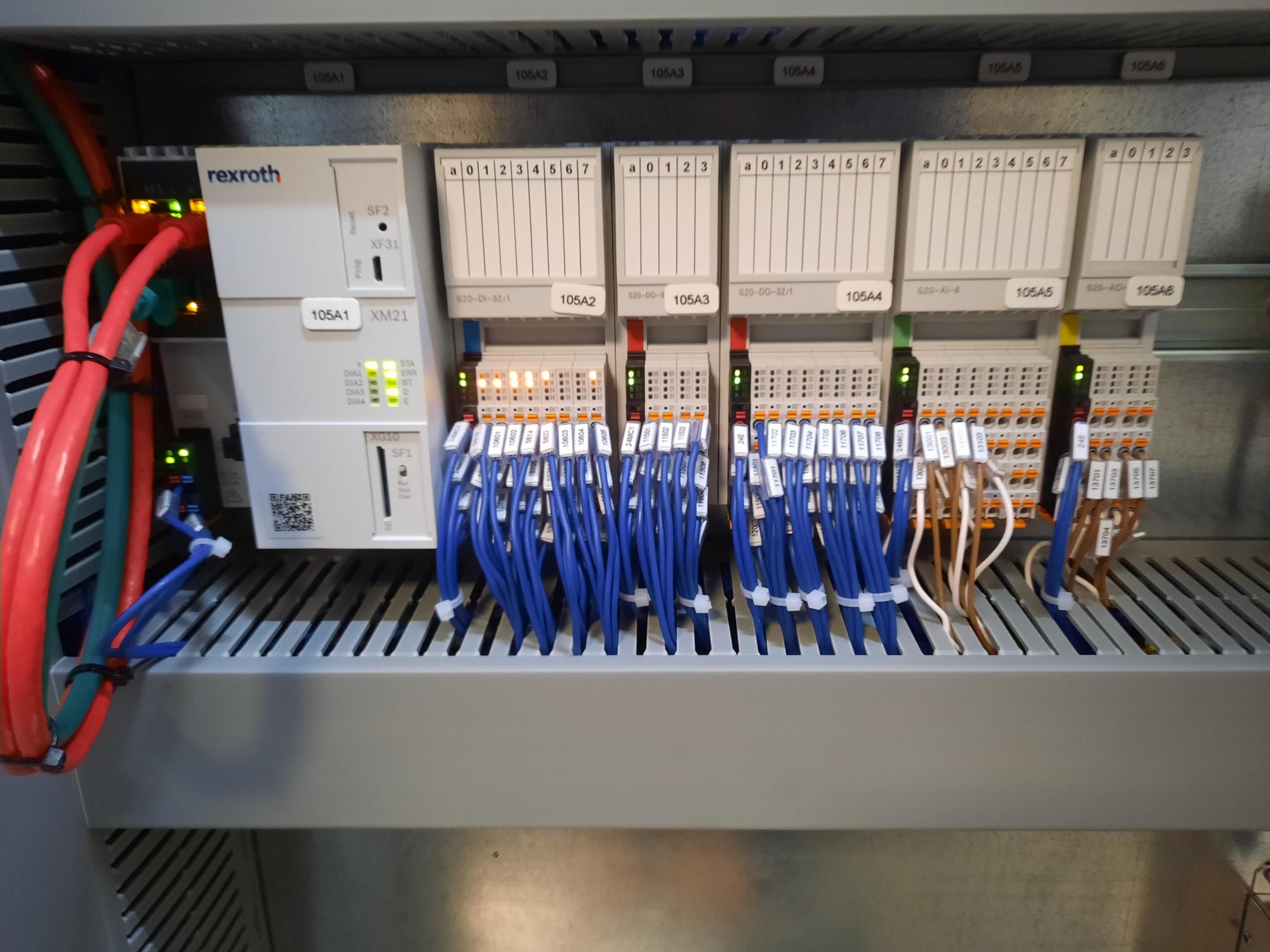

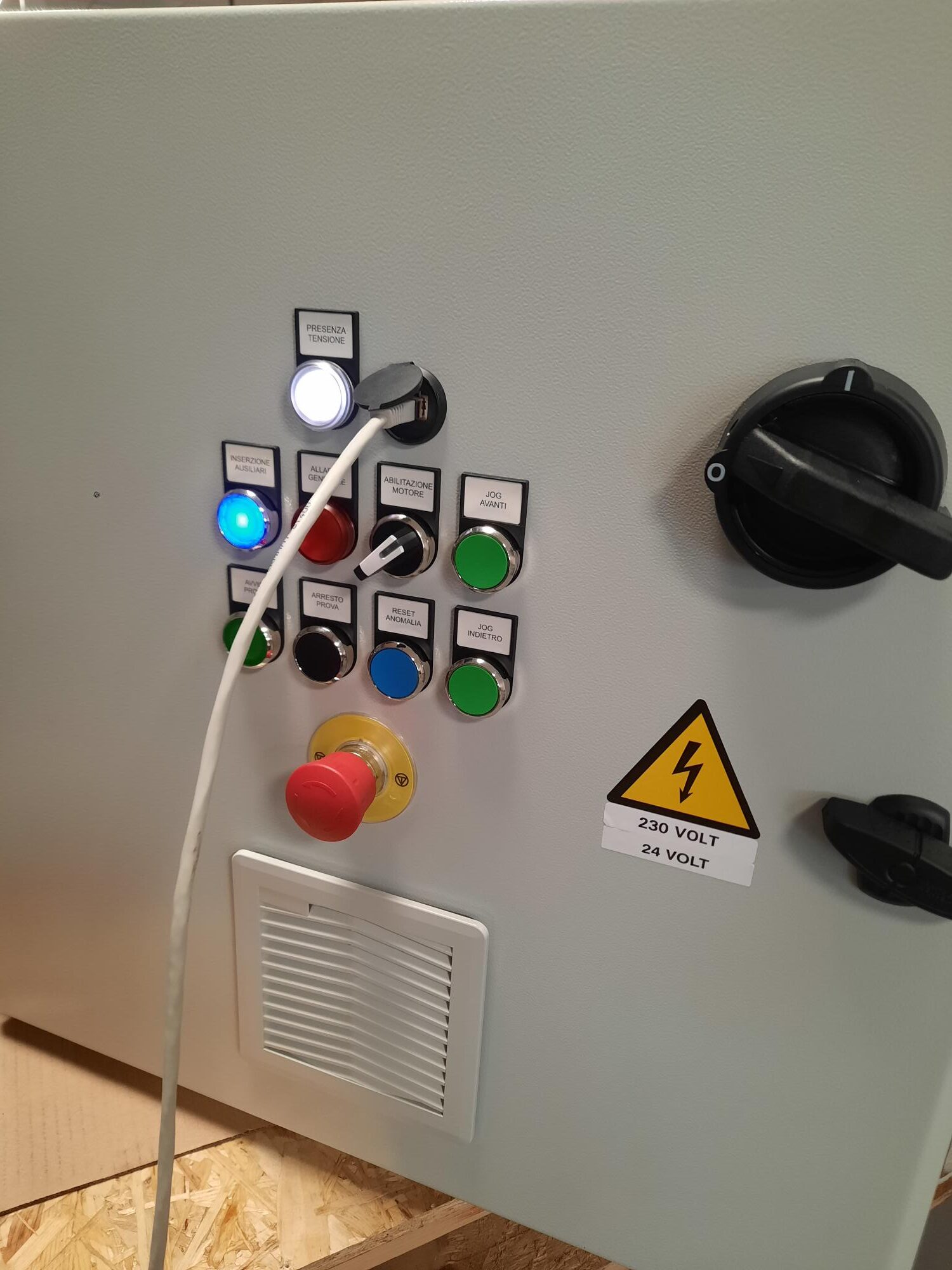

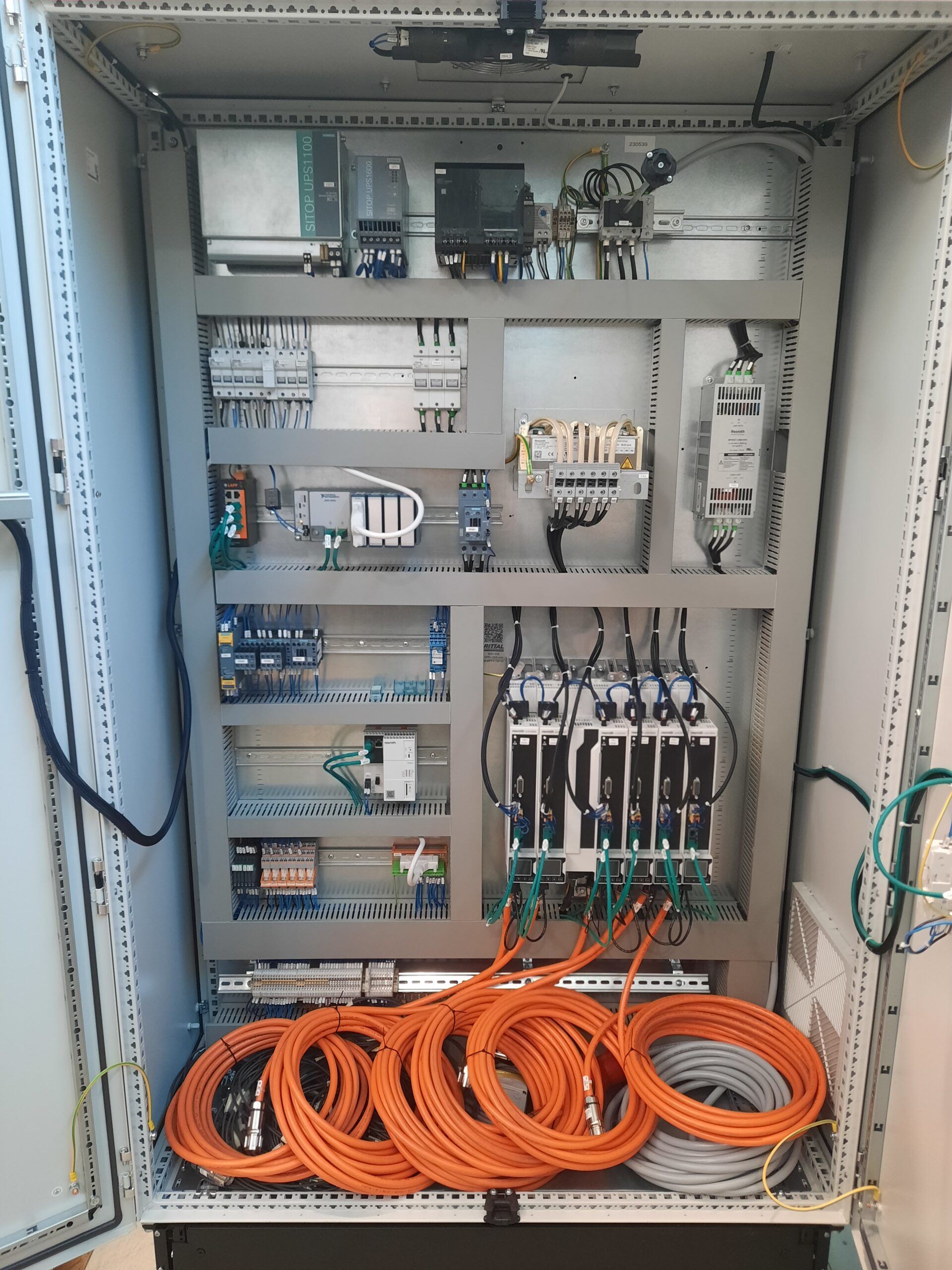

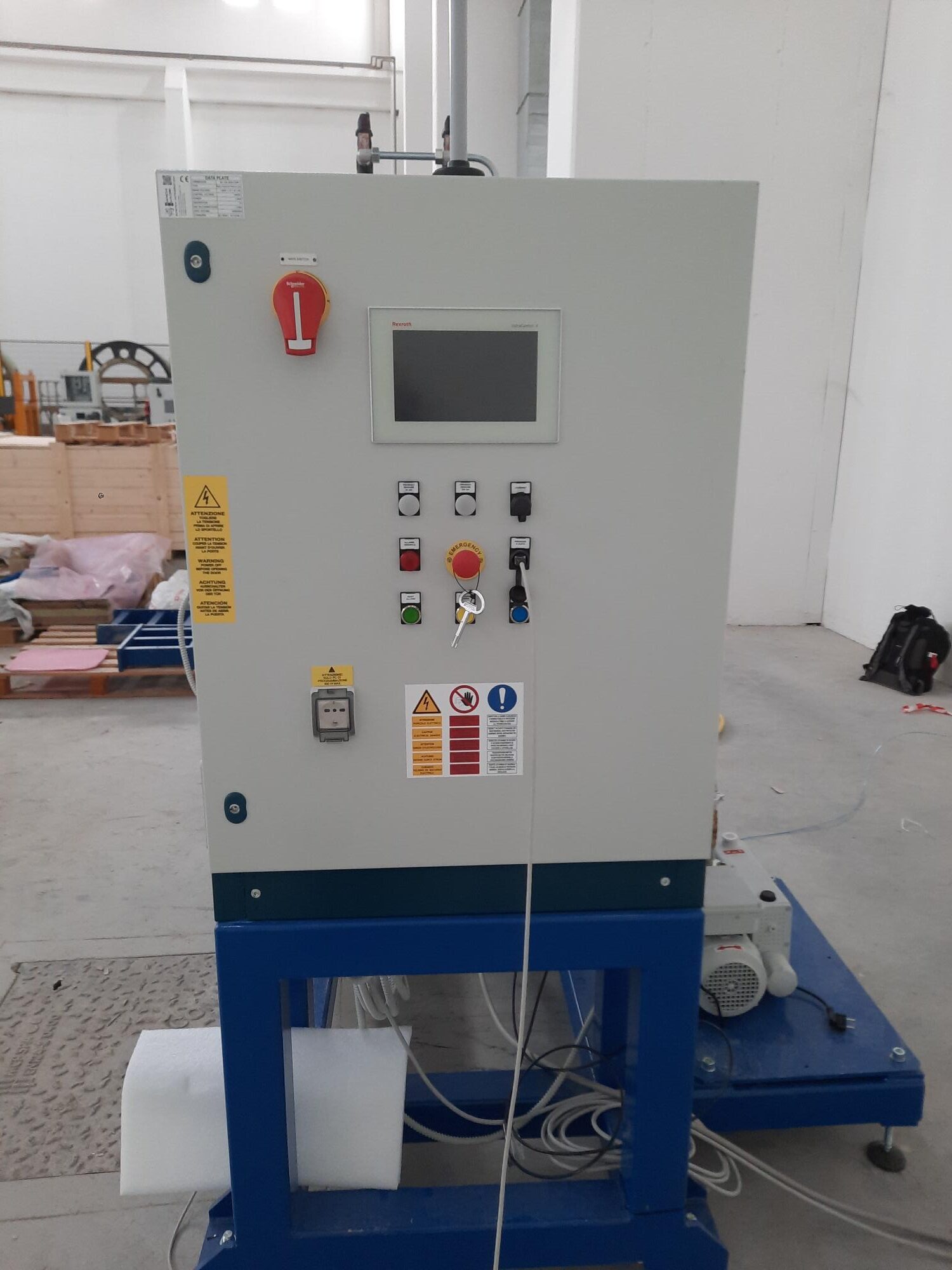

Electrical cabinets

Electrical cabinets provide power supply to machines and auxiliary items, they normally comprehend:

PLC
Safety PLC

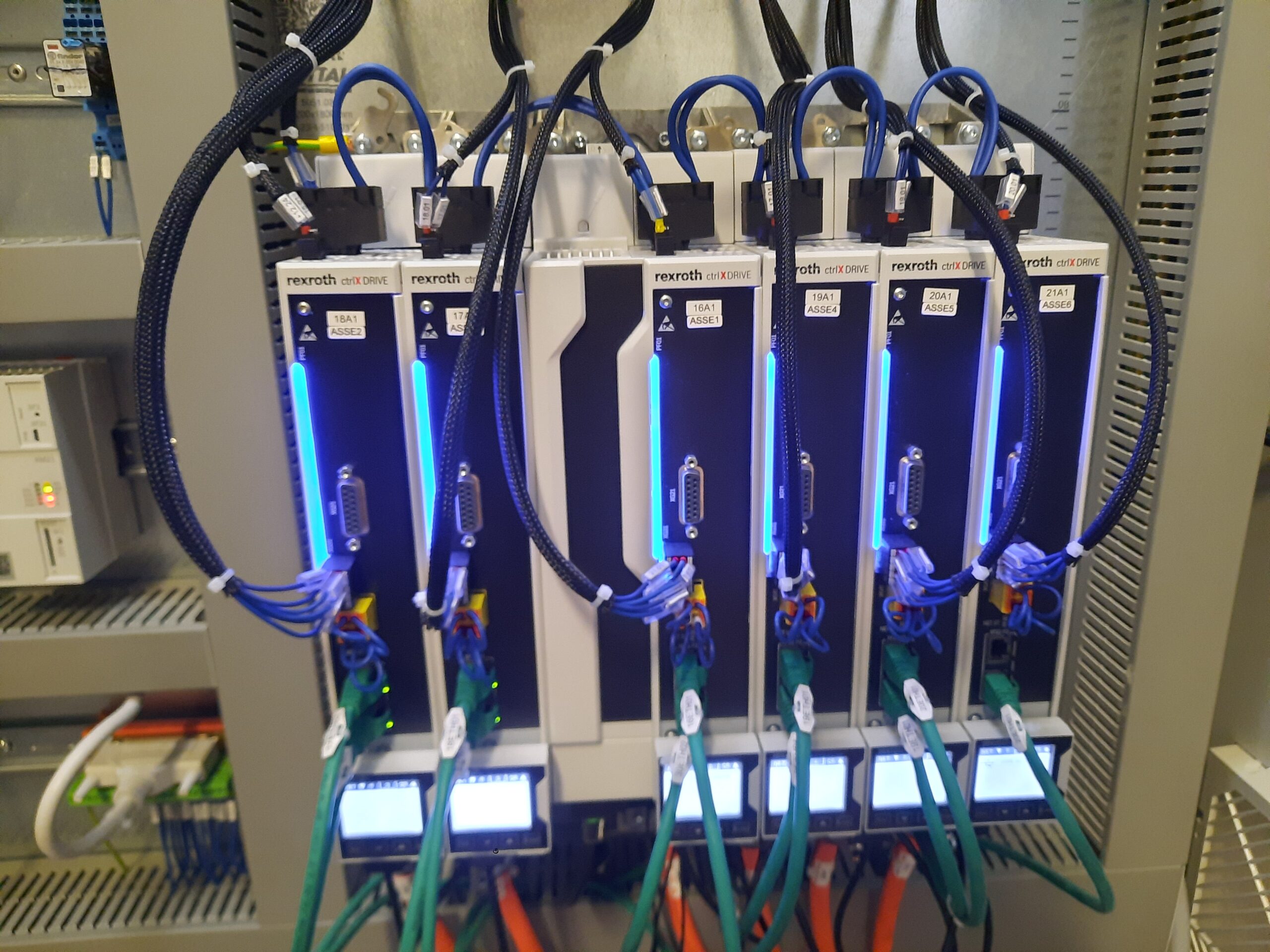

Drives, including AC/AC frequency converters, DC/AC inverters
Regenerative drives
Operator panels
Interfaces connection for external customer peripherical devices and/or controller.

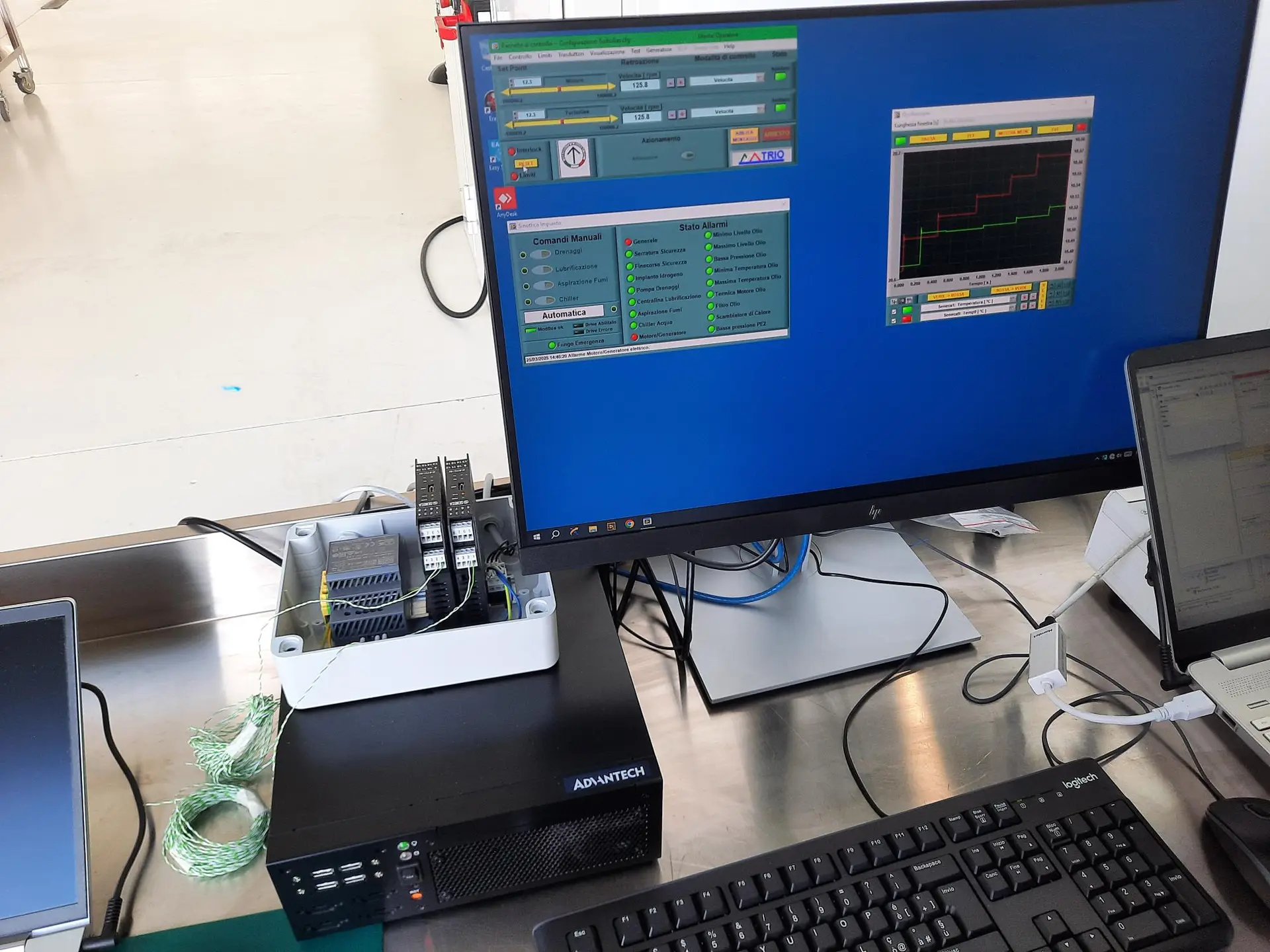

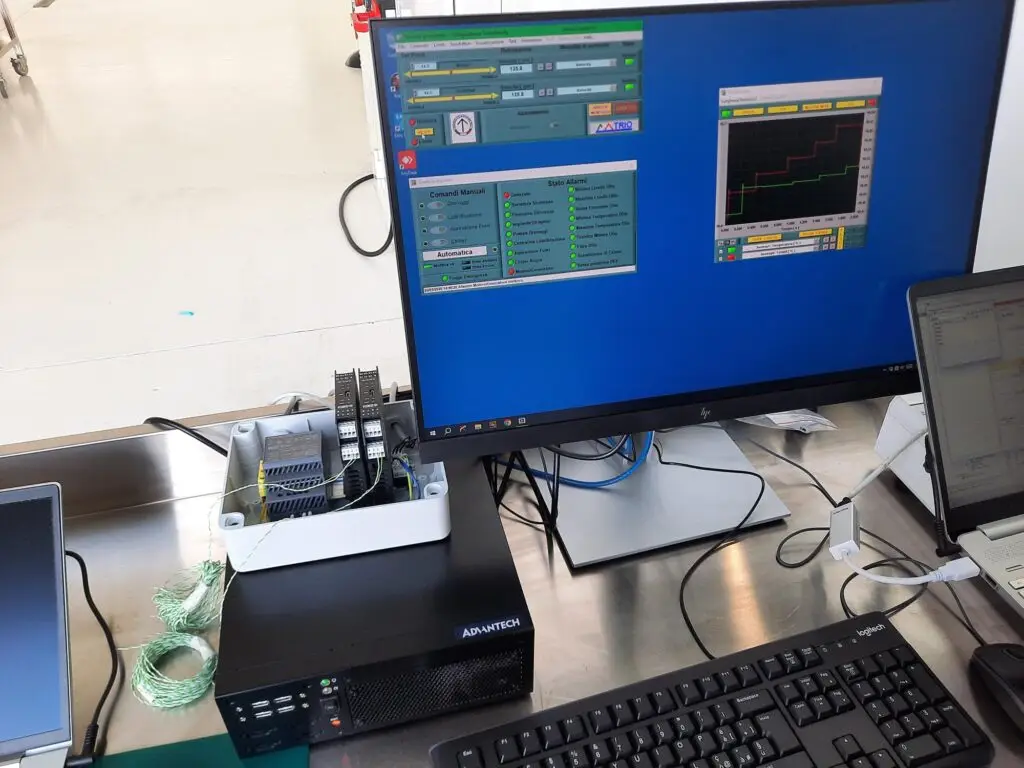

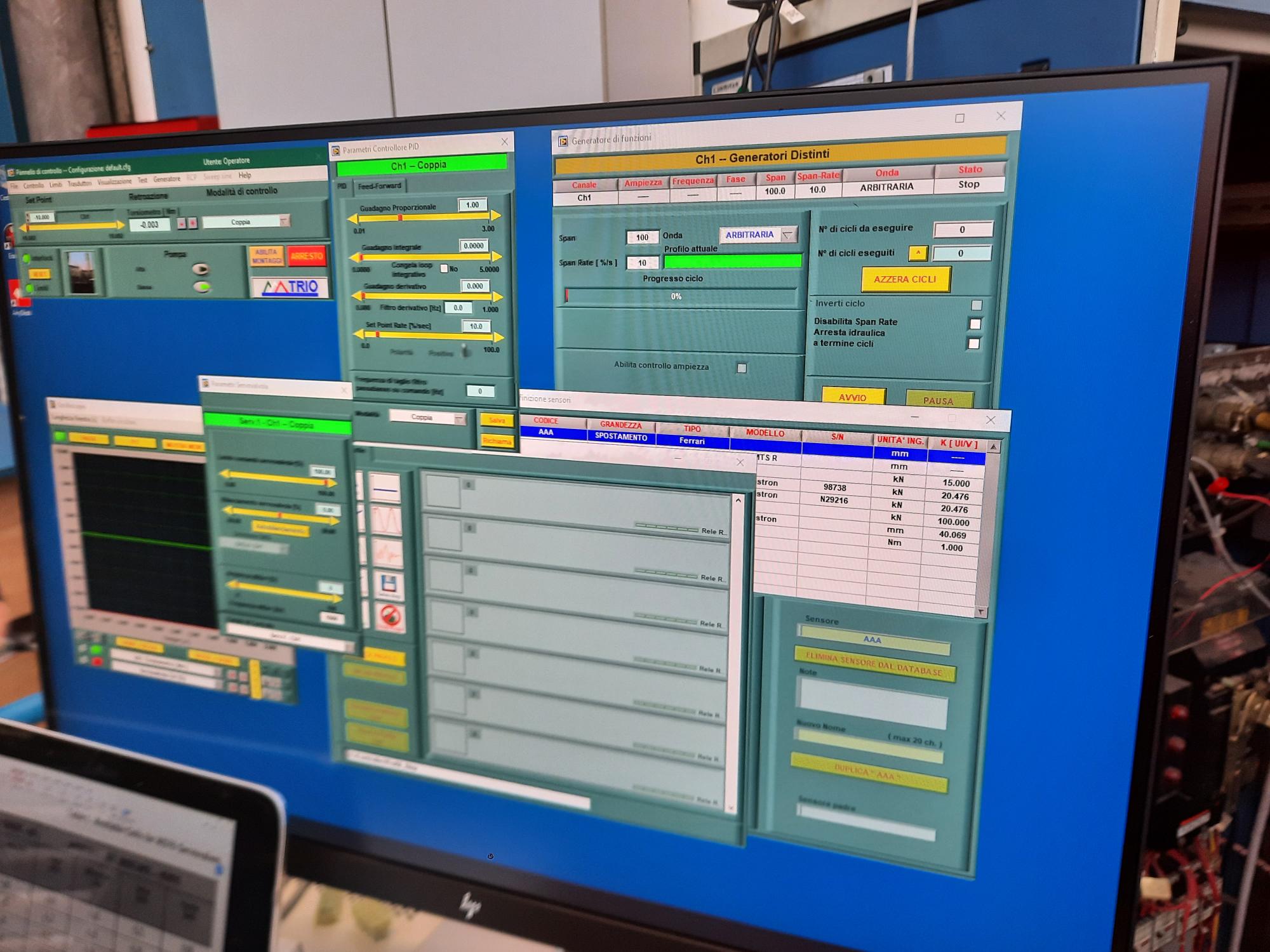

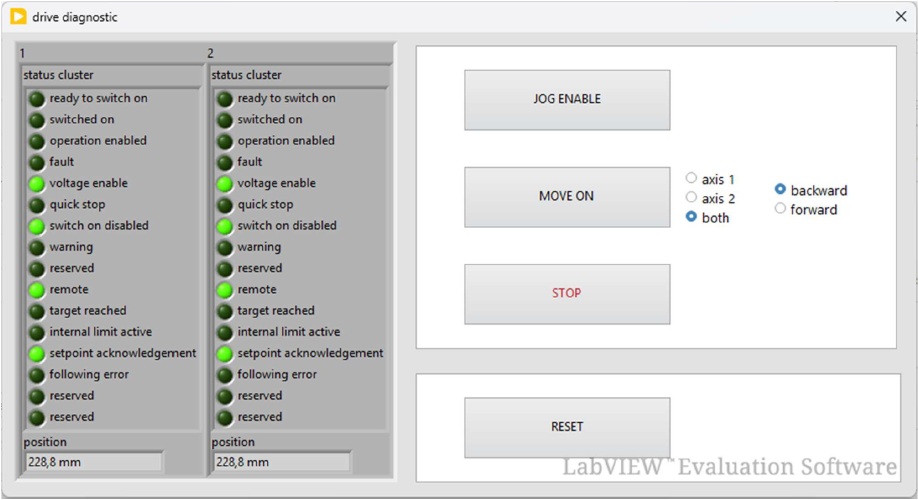

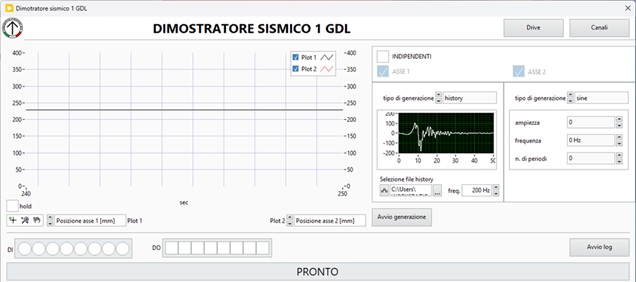

Real time controller and data acquisition systems

Controller are used for closed-loop regulation for both hydraulic and electrical axes, used in multiple kind of test: characterization, performance, fatigue, endurance, can read, modify and reproduce MTS file format.

Hardware is configurable from 1 to 32 channels, in one single station or in multiple indipendent stations.

Sofware provides a user-fiendly human-machine interface, with possible parametrization to build autonomous sequences.

Available customized solutions developed to satisfy specific testing requirements with customer data report.
